Xenon HID kit, H7–4300K, CANBUS, SLIM, HID Q4S H7-4300

| HID Q4S H7-4300

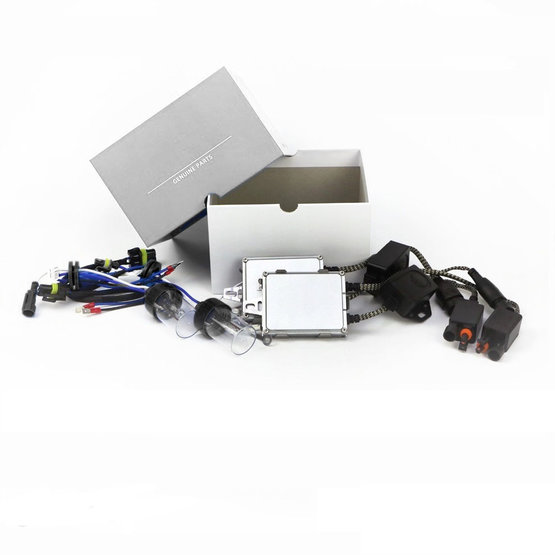

CANBUS xenon conversion kit for two H7 xenon headlights with 4300K color (white light). The set includes 2 control units (12mm) with a power of 35W and 2 xenon lamps. Designed for most modern vehicles with a burnt bulb canbus system


CANBUS xenon conversion kit for two H7 xenon headlights with 4300K color (white light). The set includes 2 control units (12mm) with a power of 35W and 2 xenon lamps.


  • for cars with 12V DC onboard voltage only
  • stable power even when power supply drops (9V to 16V - lamps do not flash)
  • in accordance with EMC (Electromagnetic Compatibility)
  • shielded cables (does not interfere with radio)
  • unique CANBUS components (without burnt bulb announcement on the dashboard)
  • extreme CANBUS decoder 21,000 uf
  • profi PCB board, 4 layers, optimized circuit layout
  • starting current 23,000 V (+/- 3,000 V)
  • SLIM design, only 12mm thickness
  • width x length 70mm x 87mm
  • "click" unit holder type
  • metal lamp base
  • waterproof and vibration resistant
  • output open/short circuit protection
  • low voltage/over voltage protection
  • input oppositely protection
  • CE certificate and E-mark approval E13 for control units (10R - 05 ...)
  • package dimensions: 28 x 18 x 5.5 cm

Note: The kit is not intended for use on the road in accordance with the law.


BMW / MERCEDES list of cars tested with Q4S ballasts:

BMW E60 5 SERIES 525 530 550
BMW E92 E93 328i 335i 3 Series Coupe
BMW F10 5 Series 528i 535i 550i M5
BMW E60 5 SERIES 525 530 550
BMW E60 FOG LIGHT 525 528 530 535 550
BMW E70 X5 3.0si 4.8i 3.0sd 35i
BMW E60 E61 523 525 530 550 '04~'07
BMW E70 X5 3.0si 4.8i 3.0sd xDrive 35i 35d
BMW E53 X5 3.0i 4.4i 4.6is Halogen headlight only
BMW E46 323Ci 325Ci 328Ci 330Ci
BMW E92 E93 3 SERIES Coupe 328 335 FOG LIGHT HID KIT
BMW E39 520 525 528 530 540
BMW E60 5 SERIES 525 530 550 FOG LIGHT
BMW E46 3 SERIES 330 328 325 323

BENZ W204 C180 C CLASS 2008-2012
MERCEDES W203 C55 AMG C CLASS 2005-2007
MERCEDES B.E.N.Z W164 ML550 M CLASS 2006-2011
MERCEDES W203 C350 C CLASS 2006-2007
MERCEDES W203 C320 C CLASS 2001-2005
MERCEDES W251 V251 R320 2006-2009
MERCEDES W203 C240 C CLASS 2001-2005
MERCEDES B.E.N.Z W164 ML350 M CLASS 2006-2011
MERCEDES W203 C200 2000-2007
MERCEDES W203 C32 AMG C CLASS 2002-2004
MERCEDES B.E.N.Z W164 ML63 AMG 2006-2011
MERCEDES W203 C230 C CLASS 2000-2007
MERCEDES W203 C180 2000-2007
MERCEDES B.E.N.Z W164 ML500 M CLASS 2006-2011
MERCEDES B.E.N.Z W204 C350 AMG 2008-Current
MERCEDES W203 C280 C CLASS 2000-2007
MERCEDES W251 V251 R500 2006-2007


Manufacturer TSS Group
Bulb type H7
Color temperature 4300K
Weight 1.145 kg
