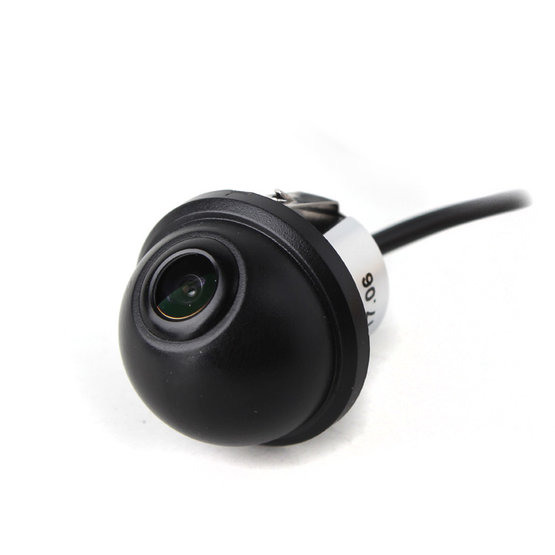

BC FR-20 Rearview camera analog RCA

Rearview camera universal into 20mm hole, with guide lines and mirror picture - option to turn ON/OFF, view angle of 170°. The camera possible to be installed as a rear (mirror image) or front (direct image). If the parking lines already displayed by monitor/radio, then the parking lines on the camera necessary to be turned off.

Technical parameters:

• sensor: PC3089 1/3"
• guide lines
• electronic Aperture: 1/60 1/10000 sec.
• minimum lighting: 0.1Lux
• signal-to-noise ratio: > 48dB
• TV system: NTSC
• number of TV lines: 600
• effective pixels 668 × 576 pixels
• weather protection: IP67
• view angle: 170°
• image orientation: mirror type
• operating temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatically
• signal cable: 6.2 m long with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cord length: 1m
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• installation depth 15 mm
• external depth 15 mm
• diameter 20 mm
• diameter of base 30 mm

Note:

• by connecting green wires, you turn on the display of the camera's parking lines, by connecting the white wires you turn on the fair picture (not mirror)
• the camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
