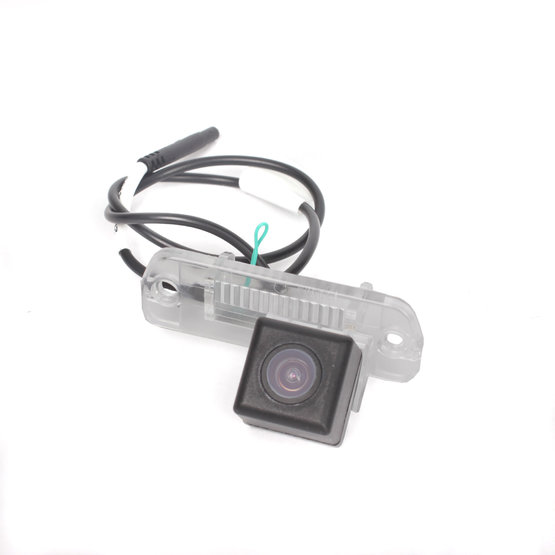

BC MCD-06 Rearview camera Mercedes M GL
|
BC MCD-06
OEM parking camera for installation to the site of rear license plate. Near the camera there is a place for instalation original light bulbs for license plate.
OEM parking camera for installation to the site of rear license plate. Near the camera there is a place for instalation original light bulbs for license plate.
Suitable for the car models:
- MERCEDES M-Class [W164] (2005-6/2011)
- MERCEDES GL-class [X164] (9/2006-6/2012)
Technical Parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 24 x 70 mm
- hole pitch for screws 57 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Brand of the car | Mercedes |
|---|---|
| Model of the car | M-Class, GL-Class |
| Use | OEM |
| Signal | analog |
| For cars | passenger |
| Connectors | CVBS-RCA |
| Weight | 0.42 kg |
