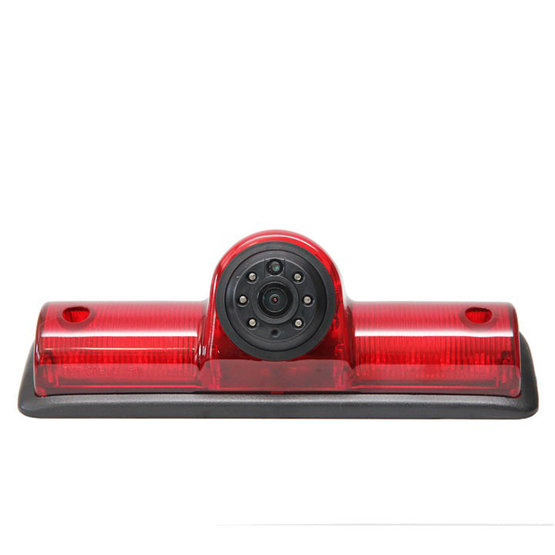

BC NIS-04 Rearview camera in brake light
|
BC NIS-04
CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Nissan vans.
Discontinued
CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Nissan vans.
Suitable for cars:
- Nissan NV 2500/3500
Note. It is necessary to check out the compatibility depending on the version of vehicle! (the physical shape of the camera body)
Technical parameters:
- Sharp CCD 1/4" sensor chip
- IR LEDs (6 pieces)
- 14 mm diameter lens
- electronic shutter: 1/50 1/10000 sec.
- minimum illumination: 0,1Lux
- signal / noise ratio:> 48 db
- TV system: NTSC
- the number of TV lines: 420
- protection: IP68
- view angle: 170°
- video Output: 1.0V / 75Ohm
- white balance: auto
- working temperature from -30 °C to + 70 °C
- power and signal cable for the camera: cca.80cm
- signal cable length 10m terminated RCA connectors (CINCH)
- power cable length 1 m
Parameters
| Use | OEM |
|---|---|
| For cars | commercial |
| Brand of the car | Nissan |
| Model of the car | NV2500, NV3500 |
| Signal | analog |
| Connectors | CVBS-RCA |
| Weight | 1.194 kg |
