BC OPL-02 rearview camera Opel Fiat
|
BC OPL-02

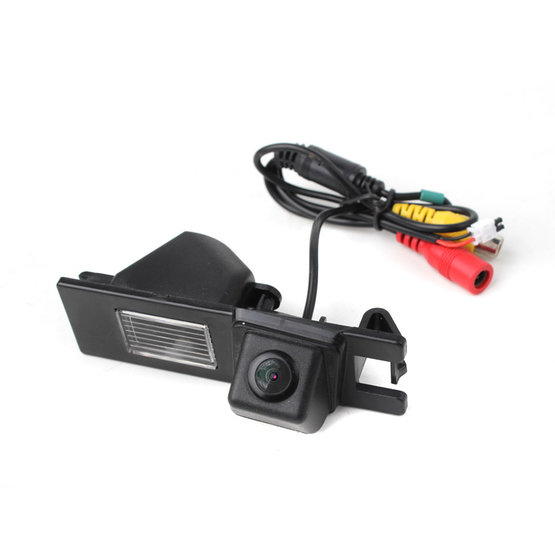

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.
OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.
Assigned for the car models:
- OPEL Vectra C (2008 ->) sedan / hatchbach
- OPEL Astra H (2004-2009)
- OPEL Corsa C
- OPEL Corsa D (2006->)
- OPEL Meriva A (2003-2010)
- OPEL Meriva B (2010->)
- OPEL Zafira B (2008-2010)
- OPEL Insignia (2008 ->)
- RENAULT Scenic III. (5/2009->)
- FIAT Palio
- FIAT Bravo (2007->)
Technical parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 32 x 104 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Brand of the car | Renault, Fiat, Opel |
|---|---|
| Model of the car | Meriva A, Scenic III., Insignia, Vectra C, Meriva B, Zafira B, Palio, Bravo, Corsa D, Astra H, Corsa C |
| Signal | analog |
| Use | OEM |
| Connectors | CVBS-RCA |
| For cars | passenger |
| Weight | 0.336 kg |
