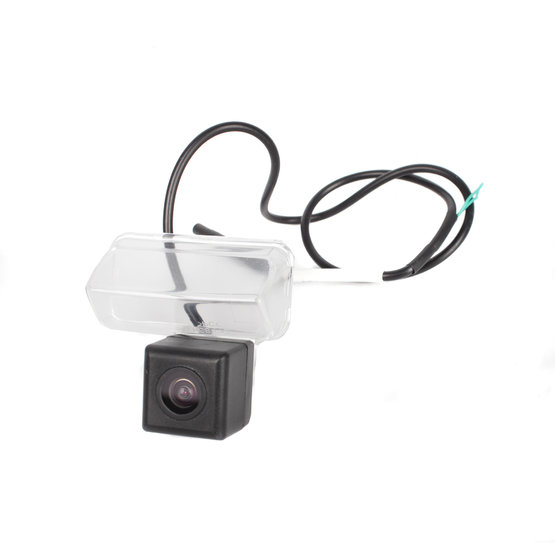

BC PSA-11 Rearview camera Citroen Peugeot

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp. For Citroen C3, C4, C5, Berlingo, Saxo, Xsara, Peugeot 206, 207, 307, 307sw, 407, Toyota Corolla, Yaris L cars.

For cars:

• Citroen C3 First generation 2002~2009
• Citroen C3 Picasso 2009~Present
• Citroen (C3) AirCross 2010~Present
• Citroen C4 Picasso 2006~2013
• Citroen C5
• Citroen Berlingo
• Citroen Saxo
• Citroen Xsara
• Citroen DS4
• Peugeot 206
• Peugeot 207
• Peugeot 407
• Peugeot 307
• Peugeot 307sw
• Toyota Corolla (14-)
• Toyota Yaris L

Technical parameters:

• sensing sensor: CMOS 1/3"
• option to enable/disable to display the guide lines
• electronic shutter: 1/60 1/10000 sec.
• minimum lighting: 0.05Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC
• number of TV lines: 700 TVL
• weather protection: IP67
• horizontal scanning angle: 120°
• image display: mirror image
• white balance: automatic
• working temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatic
• signal cable: length 8 m (CINCH / RCA connector)
• double shielding of the signal cable
• power cord: 30cm
• video output: 1.0V / 75 Ohm
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• base 56 x 29 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
