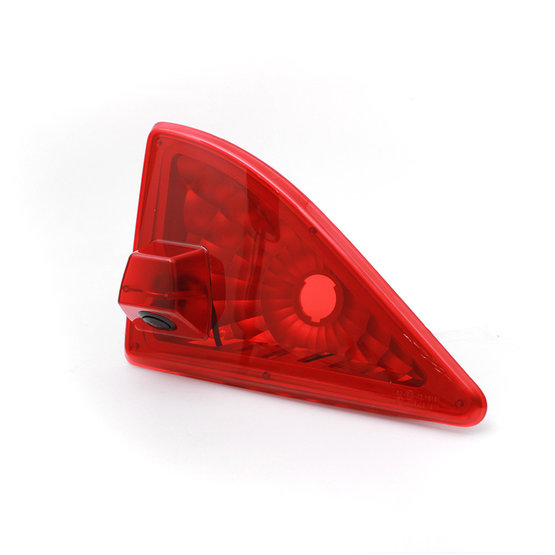

BC REN-04 Rearview camera in brake light

| BC REN-04

Rear view camera integrated in the central brake light installed above the rear hinged doors for vans Renault, Opel, Nissan.


Rear view camera integrated in the central brake light installed above the rear hinged doors for vans Renault, Opel, Nissan.

  • RENAULT Master III. [JV][FV] (2/2010->)
  • RENAULT Master III. [FL] (2013->)
  • OPEL Movano B (5/2010->)
  • NISSAN NV400 (11/2011->)

Technical parameters:

  • sensor: HD SONY CCD 1/3"
  • Electronic aperture: 1/60 1/10000 sec.
  • minimum illumination: 0.1 lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC
  • number of TV lines: 600
  • effectively pixels: 752x494
  • weather protection: IP67
  • sensing angle: 120°
  • image display: mirror image
  • white balance: automatically
  • operating temperature: from -30 °C to + 70 °C
  • signal cable: Length 10m ended with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cable: Length: 1m
  • power supply: 12V DC
  • consumption: <1W

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!



Parameters

Brand of the car Renault, Opel, Nissan
Signal analog
Plugs CVBS-RCA, M12
Model of the car Master III., Movano, NV400
Use OEM
For cars commercial
Weight 0.916 kg
