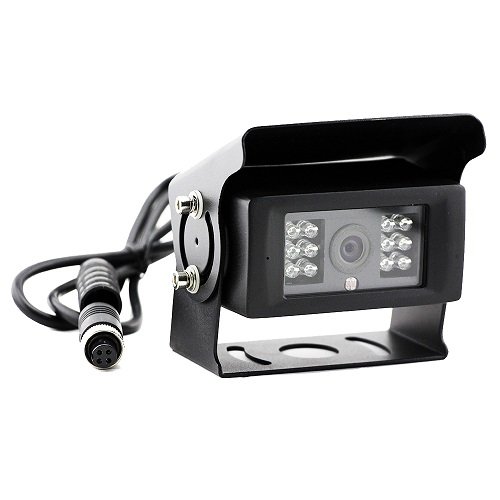

CAM3HD Camera mobile AHD 4PIN auto heating-IR
|
CAM3HD
AHD Camera 720p for vehicles, with auto IR, to display on AHD monitor, powered from monitor via M12 4PIN screw plugs, ideal to install as front or rear, or into cargo area, because of the metal body, auto heated lens and vibration resistance determined to use even under heavy conditions, the image orientation setting is performed on the monitor, e-mark.
AHD Camera 720p for vehicles, with auto IR, to display on AHD monitor, powered from monitor via M12 4PIN screw plugs, ideal to install as front or rear, or into cargo area, because of the metal body, auto heated lens and vibration resistance determined to use even under heavy conditions, the image orientation setting is performed on the monitor, e-mark.
Features
- CMOS 1/3" sensor chip
- HD resolution 720p
- automatic illumination, 12 x IR LED
- angle: sensing: 120°
- NTSC TV system
- water resistance: IP69K
- shock resistance min. 4G
- image orientation: mirror image
- possibility of tilting the camera during assembly
- 0.5m cable terminated with a 4PIN M12 screw connector
- automatic lens heating at low temperatures
- DC 12V power supply (powered from the monitor, it is designed also for 24V vehicles)
- metal camera body
- microphone: No
- power consumption: <3W
- working temperature from -20 to +70 °C
- dimensions: 85 x 43 x 52 mm (without shield and stand)
- e-mark
Package contents: camera with U holder, allen key
Note. The AHD camera is designed to be displayed on an AHD monitor, analog monitors do not support AHD cameras.
Parameters
| Connectors | M12 |
|---|---|
| Use | UNI |
| Signal | AHD |
| For cars | commercial |
| Weight | 0.55 kg |
