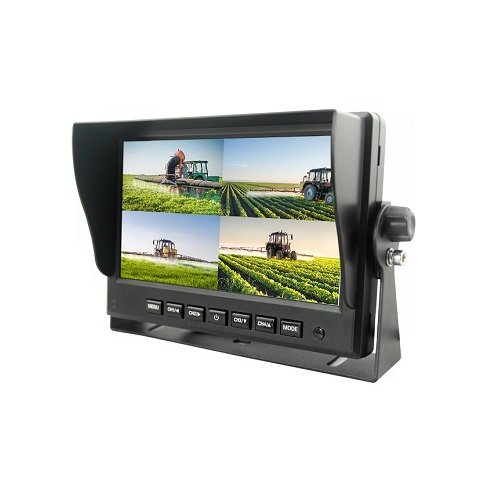

TFT7HD4 Monitor 7" AHD 4ch 4split 4PIN 12/24V

| TFT7HD4

AHD Monitor 7" for vehicles, supporting up to four cameras to connect, simultaneous multiple view, M12 4PIN screw plugs, 1024x600 resolution, for 12/24V on-board voltage, AHD cameras or analogue cameras with M12 or RCA cinch plugs (using a reduction) compatible, 180° flip image function, ideal to use with rearview camera, side and front camera, or a camera in the cargo area.


AHD Monitor 7" for vehicles, supporting up to four cameras to connectsimultaneous multiple viewM12 4PIN screw plugs, 1024x600 resolution, for 12/24V on-board voltage, AHD cameras or analogue cameras with M12 or RCA cinch plugs (using a reduction) compatible, 180° flip image function, ideal to use with rearview camera, side and front camera, or a camera in the cargo area.

TIP: Connect the dedicated trigger wire for each camera (side to turn signal, rear to reverse, ..) The fullscreen of a particular camera will show up automatically, when the driver needs to see it.

  • e-mark E24 (Ireland)

Features

  • diagonal 7” TFT LCD 16:9
  • 1024 x 600 RGB resolution
  • AV input 4x 720p HD video input
  • function of simultaneous display of 4 cameras - 4SPLIT
  • display options: 1 camera, 2 cameras, 3 cameras, 4 cameras
  • trigger wire for each video input (4x)
  • image orientation adjustment (left, right, up, down)
  • on / off guide lines Yes
  • speaker Yes
  • backlit buttons
  • 300cd / m2 display backlight
  • TV system PAL / NTSC - possibility to set for 2+2 cameras individually
  • support for AHD, CVBS cameras - possibility to set for 2+2 cameras individually
    • The initial setting of the camera signal must be done in the monitor menu
  • shock resistance min. 4G
  • DC power supply 12-24V
  • working temperature from -20 to +70 °C
  • dimensions 180x 121x 24mm (without shield and stand)

Package contents: monitor, main cabling, trigger wire cabling, remote control, U stand, shield, allen key

Parameters

Diagonal 7.0"
Signal AHD
Plugs M12
Use UNI
For cars commercial
Weight 1.266 kg
