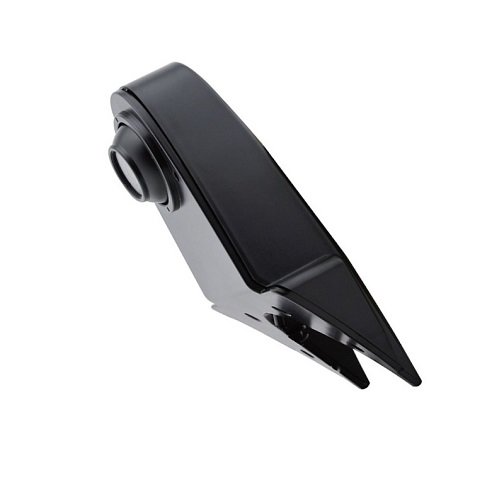

CAM2HD Camera mobile AHD on top rear 4PIN auto IR

| CAM2HD

AHD Camera 720p for vehicles, with auto IR, to display on AHD monitor, powered from monitor via M12 4PIN screw plugs, ideal to install as rear on the top edge, the image orientation setting is performed on the monitor, e-mark.

Show price
CAM2HD Camera mobile AHD on top rear 4PIN auto IR

AHD Camera 720p for vehicles, with auto IR, to display on AHD monitor, powered from monitor via M12 4PIN screw plugs, ideal to install as rear on the top edge, the image orientation setting is performed on the monitor, e-mark.

Features

  • CMOS 1/3" sensor chip
  • HD resolution 720p
  • automatic illumination, 10 x IR LED
  • angle: sensing: 120°
  • PAL TV system
  • water resistance: IP69K
  • shock resistance min. 4G
  • image orientation: mirror image
  • possibility to rotate / tilt the camera lens while installed
  • 0.3m cable terminated with a 4PIN M12 screw connector
  • DC 12V power supply (powered from the monitor, it is also designed for 24V vehicles)
  • microphone: No.
  • power consumption: <3W
  • working temperature from -20 to +70 °C
  • dimensions: 210 x 128 x 62 mm
  • e-mark

Package contents: camera, screws, double-sided 3M tape

Note. The AHD camera is designed to be displayed on an AHD monitor, analog monitors do not support AHD cameras.

Parameters

Plugs M12
Use UNI
For cars commercial
Signal AHD
Weight 0.435 kg
