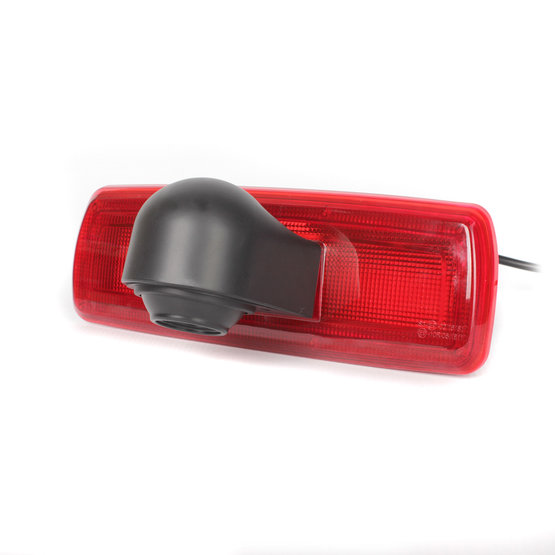

BC REN-03 Rearview camera in brake light
|
BC REN-03
CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Renault Trafic (14->), Opel Vivaro (14->).
CCD rear view camera integrated in the central brake light installed above the rear hinged doors for Renault and Opel vans.
Suitable for cars:
- RENAULT Trafic III. (2014->)
- OPEL Vivaro II. (2014->)
- NISSAN NV300 (2016-)
- FIAT Talento (2016->)
Note. It is necessary to check out the compatibility depending on the version of vehicle! (the physical shape of the camera body)
Technical parameters:
- Sharp CCD 1/4" sensor chip
- IR LEDs (6 pieces)
- 14 mm diameter lens
- electronic shutter: 1/50 1/10000 sec.
- minimum illumination: 0,1Lux
- signal / noise ratio:> 48 db
- TV system: NTSC
- the number of TV lines: 420
- protection: IP68
- view angle: 170°
- video Output: 1.0V / 75Ohm
- white balance: auto
- working temperature from -30 °C to + 70 °C
- power and signal cable for the camera: cca.80cm
- signal cable length 10m terminated RCA connectors (CINCH)
- power cable length 1 m
Parameters
| Brand of the car | Renault, Fiat, Opel, Nissan |
|---|---|
| Model of the car | Talento, Trafic III., Vivaro II., NV300 |
| Signal | analog |
| Connectors | CVBS-RCA, M12 |
| Use | OEM |
| For cars | commercial |
| Weight | 0.34 kg |
