BC FORD CUSTOM Rearview camera in brake light

| BC FORD CUSTOM

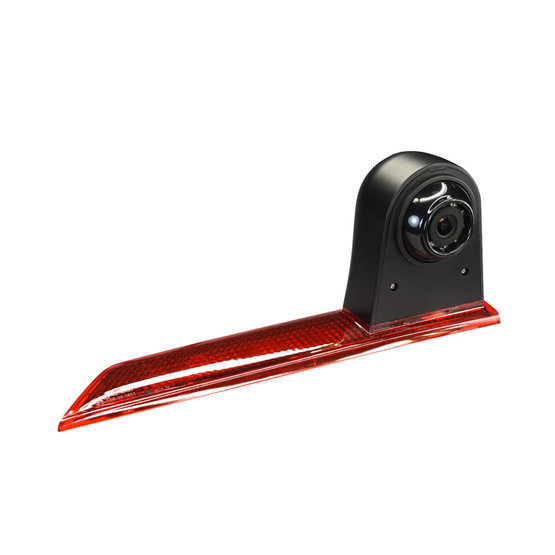

OEM rear view parking camera integrated in the central brake light installed above the rear hinged doors for Ford Transit Custom vans (V362) (12-).


OEM rear view parking camera integrated in the central brake light installed above the rear hinged doors for Ford Transit Custom vans (V362) (12-).

Suitable for the car models:

  • Ford Transit Custom (V362) (12-15)

Technical parameters:

  • sensor: PC3089 1/3"
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • Automatic IR LEDs (6pcs)
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Brand of the car Ford
Model of the car Transit Custom
Use OEM
Signal analog
Plugs CVBS-RCA, M12
For cars commercial
Weight 0.723 kg
