BC FORD CUSTOM16 Camera in brake light
|
BC FORD CUSTOM16

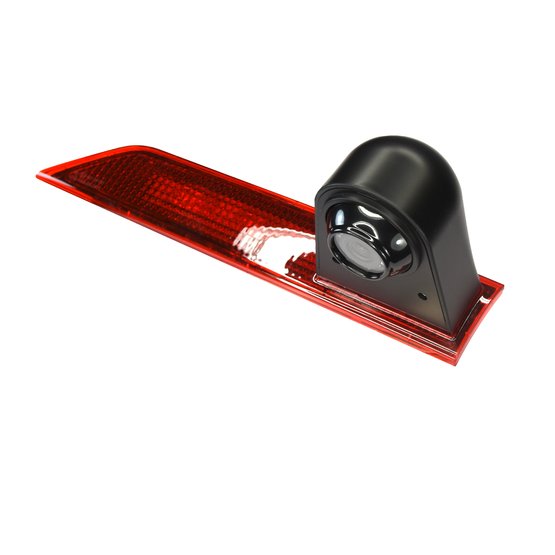

OEM rear view parking camera integrated in the central brake light installed above the rear hinged doors for Ford Transit Custom vans (V362) (16-).
OEM rear view parking camera integrated in the central brake light installed above the rear hinged doors for Ford Transit Custom vans (V362) (16-). The body of the camera includes brake LED light.
Suitable for the car models:
- Ford Transit Custom (V362) (16-)
Technical parameters:
- sensor: PC3089 1/3"
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- Automatic IR LEDs (6pcs)
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Brand of the car | Ford |
|---|---|
| Model of the car | Transit Custom |
| Use | OEM |
| Signal | analog |
| Connectors | CVBS-RCA, M12 |
| For cars | commercial |
| Weight | 0.761 kg |
