BC VW-01 Rearview camera Škoda VW
|
BC VW-01

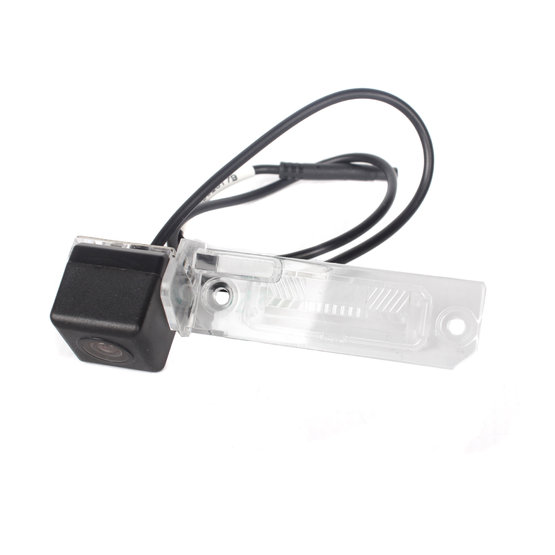

OEM colour parking camera to install into the rear licence plate light body.
OEM colour parking camera to install into the rear licence plate light body.
Assigned for the car models:
- ŠKODA Superb II. sedan (2008->)
- VW Golf IV. (1997-2003) - not possible to use for variant version
- VW Golf V. [1K] (2003-2009) - not possible to use for variant version
- VW Polo IV. [9N2] (2001-2008)
- VW Eos [1F] (5/2006-2011)
- VW Passat [B6] sedan (2006-2011)
- VW Passat CC (5/2008-2012)
- VW Touran
- VW Bora
- VW Lupo (1999-2006)
- VW Beetle (2006-2010)
Technical parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
- base 22 x 60 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Model of the car | Polo IV., Passat CC, Passat, Eos, Touran, Golf, Bora, Lupo, Beetle I., Superb II. |
|---|---|
| Signal | analog |
| Connectors | CVBS-RCA |
| Brand of the car | Škoda, VW |
| Use | OEM |
| For cars | passenger |
| Weight | 0.403 kg |
