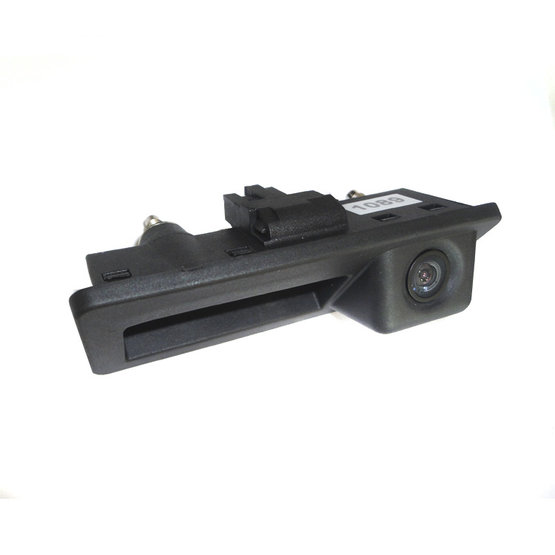

BC VW-03 rearview camera in handle Audi VW

OEM colour parking camera to install into the handle of the 5th door.

Assigned for the car models:

• AUDI A3 [8V] (4/2012->)
• AUDI A4 [B8] (2008->)
• AUDI A5 Coupe [8T] (6/2007->)
• AUDI A5 Sportback [8T] (9/2009->)
• AUDI A6 (2012->)
• AUDI Q3 [U8] (6/2011->)
• AUDI Q5 (2007->)
• PORSCHE Cayenne II. (2010->)
• ŠKODA Octavia III. (2013->)
• VW Golf V. (10/2003->) Variant (combi)
• VW Passat B7 [362] (8/2010->) - sedan
• VW Passat B7 [365] (8/2010->) - Variant (combi)
• VW Tiguan [5N_] (5/2007->)
• VW Touran II. [1T3] (/2010->)

Technical parameters:

• sensor: PC3089 1/3"
• option to enable/disable to display the guide lines
• electronic Aperture: 1/60 1/10000 sec.
• minimum lighting: 0.1Lux
• signal-to-noise ratio:> 48dB
• TV system: NTSC (supported by each monitor/head unit)
• number of TV lines: 600
• effective pixels 668 × 576 pixels
• weather protection: IP67
• view angle: 170°
• camera body: durable plastics "private housing"
• image display: mirror
• operating temperature from -30 °C to + 70 °C
• AGC, BLC, white balance: automatically
• signal cable: 6.2 m long with CINCH / RCA connector
• video output: 1.0V / 75 Ohm
• power cord length: 1m
• power supply: 12V DC
• consumption: <1W

Camera dimensions:

• base 48 x 110 mm
• pitch of mounting screws 72 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
