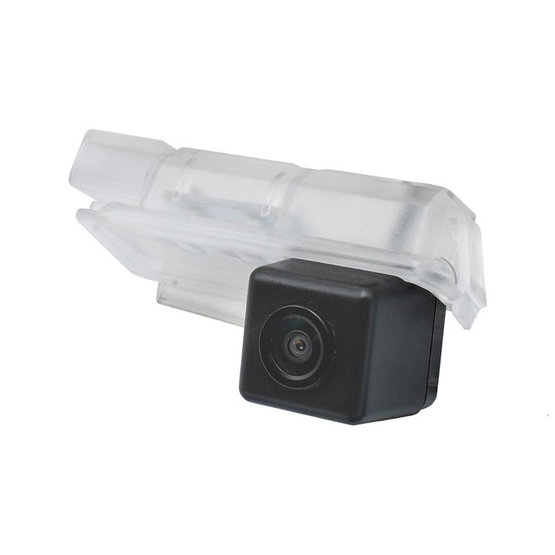

BC VW-08 Rearview camera VW Golf 7

| BC VW-08

OEM color rear view camera. LED lamp lighting replaces the original number plates light bulb, for Volkswagen Golf VII, Seat Leon III cars.

Show price

OEM color rear view camera. LED lamp lighting replaces the original number plates light bulb, for Volkswagen Golf VII, Seat Leon III cars.

Suitable for cars:

VW Golf VII. [5G1] (11 / 2012->)
VW Eos [1F7] (2014->)
VW Beetle II. [5C1] (2014->)
VW Scirocco [137] (5 / 2008->)
VW CC (11 / 2014->)
SEAT Leon III. [5F1] (9 / 2012->)

Technical parameters:

sensor: PC3089 1/3"
option to enable/disable to display the guide lines
electronic Aperture: 1/60 1/10000 sec.
minimum lighting: 0.1Lux
signal-to-noise ratio:> 48dB
TV system: NTSC (supported by each monitor/head unit)
number of TV lines: 600
effective pixels 668 × 576 pixels
weather protection: IP67
view angle: 170°
camera body: durable plastics "private housing"
image display: mirror
operating temperature from -30 °C to + 70 °C
AGC, BLC, white balance: automatically
signal cable: 6.2 m long with CINCH / RCA connector
video output: 1.0V / 75 Ohm
power cord length: 1m
power supply: 12V DC
consumption: <1W

Camera dimensions:

base 28 x 77,5 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Use	OEM
For cars	passenger
Brand of the car	VW, Seat
Signal	analog
Connectors	CVBS-RCA
Model of the car	Golf VII., Beetle II., Scirocco, Eos, Leon III., Passat CC
Weight	0.432 kg

Manuals and support

Files

Záručný list
252,14 kB Download
