BC VW-84 Rearview camera in logo Golf V VI

| BC VW-84

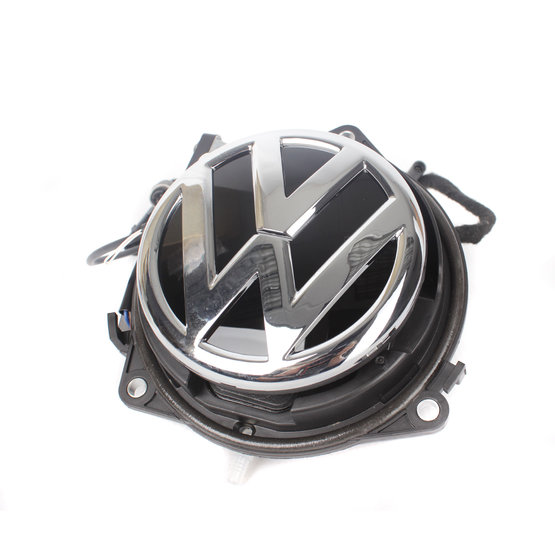

OEM color rear view camera integrated in the "VW" logo located on the 5-th door. After the reverse gear is shifted, the camera automatically pops up, original function of door opening by the logo is maintained.


OEM color rear view camera integrated in the "VW" logo located on the 5-th door. After the reverse gear is shifted, the camera automatically pops up, original function of door opening by the logo is maintained.

Suitable for cars:

  • VW Golf V. (9/2003->)
  • VW Golf VI. (8/2007->)
  • VW Sharan II. (2010->)
  • VW Passat CC (8/2008->)

Specification:

  • diameter of the chrome logo - 11cm
  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

NOTE: The camera is designed for aftermarket head units with RCA camera input. Using with oem radio is likely to require the specific video adapter for parking camera!



Parameters

Use OEM
For cars passanger
Brand of the car VW
Signal analog
Plugs CVBS-RCA
Model of the car Passat CC, Sharan II., Golf
Weight 1.073 kg
