New

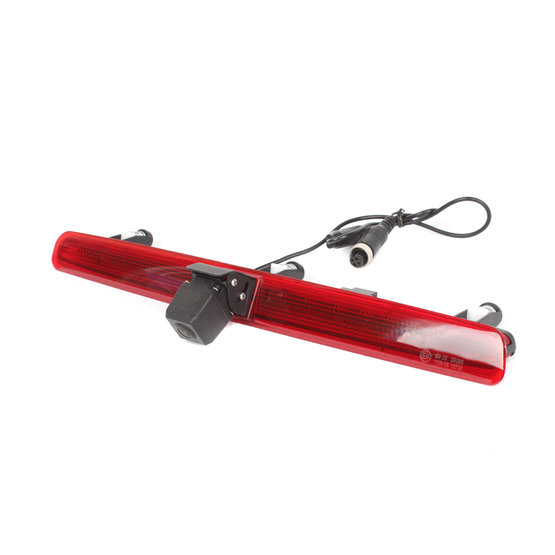

BC VW-T5 LIFT Rearview camera in-brake light

| BC VW-T5 LIFT

OEM rearview camera for VW Transporter T5 (03-15) with lift door

Show price

BC VW-T5 LIFT Rearview camera in-brake light

OEM rearview camera for VW Transporter T5 (03-15) with lift door.

Suitable for cars:

VW Transporter T5 (03-15) with lift door only

Technical parameters:

Sharp CCD 1/4 "sensor chip
IR LEDs
14 mm diameter lens
electronic shutter: 1/50 1/10000 sec.
minimum illumination: 0,1Lux
signal / noise ratio:> 48 db
TV system: NTSC
the number of TV lines: 420
protection: IP68
view angle: 170°
video Output: 1.0V / 75Ohm
white balance: auto
working temperature from -30 °C to + 70 °C
power and signal cable for the camera: cca.80cm
signal cable length 10m terminated with RCA connectors (CINCH)
power cable length 1 m

Camera dimensions:

base 33 x 340 mm

Parameters

Signal	analog
Connectors	CVBS-RCA, M12
Brand of the car	VW
Use	OEM
For cars	commercial
Model of the car	T5
Weight	0.714 kg
