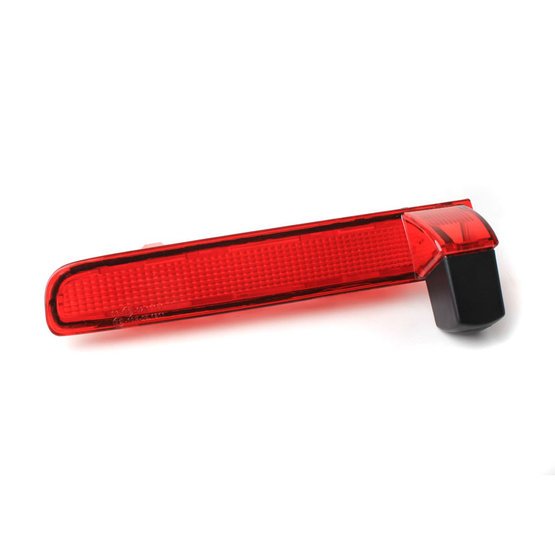

BC VW-T6 Rearview camera in brake light
|
BC VW-T6
Parking camera integrated in the central brake light installed above the rear wing doors for VW Transporter T5 / T6 vans. Camera with E-mark.
Parking camera integrated in the central brake light installed above the rear wing doors for VW Transporter T5 / T6 vans. Camera with E-mark.
Designed for cars:
- VW Transporter T5
- VW Transporter T6
Technical parameters:
- sensor: PC3089 1/3"
- Electronic Aperture: 1/50 1/10000 sec.
- Minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 420
- weather protection: IP68
- sensing angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- white balance: automatically
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- Signal cable: 6.2m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
E-mark: E9 10R
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Signal | analog |
|---|---|
| Connectors | CVBS-RCA, M12 |
| Use | OEM |
| Brand of the car | VW |
| For cars | commercial |
| Model of the car | T5, T6 |
| Weight | 0.546 kg |
