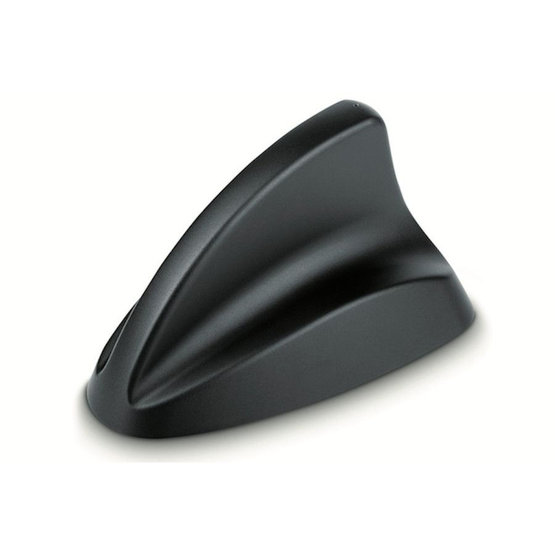

CAL-7677937 Calearo antenna Shark2 AM FM DAB

Roof antenna, AM/FM/DAB+ Shark2

Parameters

• current consumption: 85mA max.
• black colour
• dimensions: 11.7 x 7.6 x 6.2cm (LxWxH)
• body hole diameter: round 19mm / square 15x15mm

AM / FM

• AM frequency range: 0.52 - 1.71Mhz / FM: 88-108Mhz
• separate power supply: 12V
• without antenna lead
• antenna connector: RAKU2 female (cable 14cm)

DAB

• separate 12V power supply
• cable length: 5m / 50Ohms / impedance 101pF / m
• connector: SMB female
• RAKU2 connector
• frequency range: 174 - 240MHZ (III. band)
• gain: 16dB (band III)

For cars

• on the roof for cars or trucks
• as a replacement for the original antenna
• in the case of another type of connector on the device side, a reduction can be used
