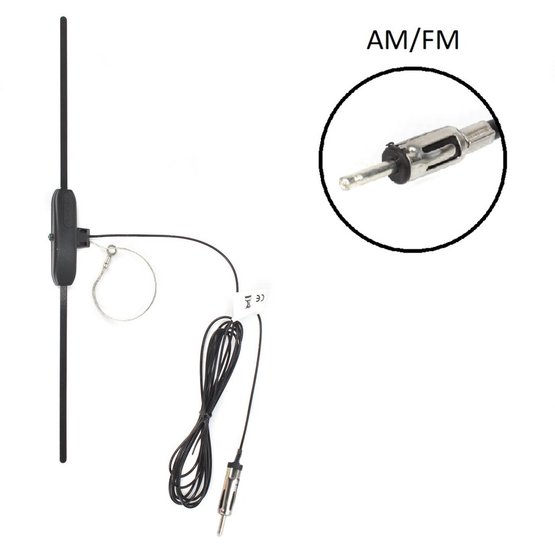

CAL-7697015 Calearo antenna AM FM adhesive
Antenna internal, AM/FM, self-adhesive, amplified
Antenna internal, AM/FM, self-adhesive, amplified
Parameters
- location: self-adhesive on the glass from the inside
- frequency range: AM 0.52-1.71 MHz / FM 87.5-108 MHz
- supply voltage: +12 to + 16V
- built-in amplifier gain: 26dB
- current consumption: 45mA
- dipole width: 30cm
- drain length: 2.4 m
- ground cable length: 140mm
- car radio connector: DIN
- dimensions: 305x26x14mm
- weight: 80g
- protection: IP50
- working temperature: -10 to + 90 °C
Parameters
| Use | Universal |
|---|---|
| Location | other |
| Manufacturer | CALEARO |
| Signal | AM/FM |
| Connector | DIN |
| Weight | 0.09 kg |
