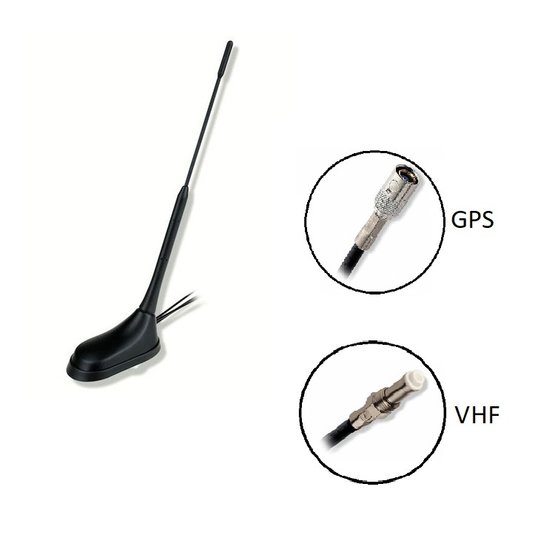

CAL-7771000 Calearo Antena VHF GNSS 5.0m cable

CALEARO | CAL-7771000

Antena VHF GNSS 5.0m cable.


COMBI VHF
Frequencies

  • GPS=1575,42±1,023 MHz
  • VHF=146/174 MHz

Gain:GPS≥27 dBi
Max Power: VHF 20 W
VSWR: VHF<2:1 BW 2MHz GPS<2:1
Power supply: GPS=3 /5V
Power consuption: GPS = 30 mA
Connector:GPS =SMB F  no connector VHF
Antenna Cable : GPS (L=5 MT Z=50Ω C=100 pF/m) VHF (L=5 M Z=50Ω C=101 pF/m)
Mounting Hole: ø 19 mm

Parameters

Use Universal
Location rear
Manufacturer CALEARO
Connector SMB, FME
Signal VHF, GPS
Weight 0.456 kg
