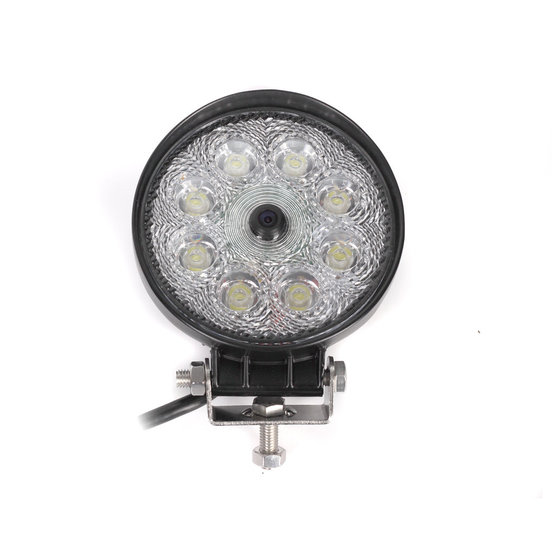

CAM3 Camera analog, with LED work light 4PIN
|
CAM3
Universal camera with LED work light. The camera is suitable for use in low light condition, or even under the complete darkness, when the screen monitoring is necessary. The video image remains in color (unlike black/white picture of infrared technology).
Discontinued
Universal camera with LED work light. The camera is suitable for use in low light condition, or even under the complete darkness, when the screen monitoring is necessary. The video image remains in color (unlike black/white picture of infrared technology).
- camera
- image sensor 1/3" CMOS1058
- effective pixels 976 x 592
- 700 TVL resolution (analog)
- angle of view 140° (diagonal)
- min. lighting 0.1 lux
- TV standard NTSC
- image orientation
- direct image
- mirror image (after cutting the green loop)
- connection 4PIN M12 connector (signal and power supply)
- power supply 12 V (from monitor)
- LED Light
- type flood-scattered light
- coverage of about 30 meters
- number 8pcs
- power supply 12 / 24 V (free wires)
- luminous flux 1.154 lm
- color 6.000 K (white light)
- work. temperature range from -20 °C to +70 °C
- current consumption
- 60 mA without LED light
- 2.33 A with LED light
- waterproof IP67
- head diameter / depth 115 mm / 45 mm
- e-mark certified
Parameters
| Use | UNI |
|---|---|
| For cars | commercial |
| Signal | analog |
| Connectors | M12 |
| Weight | 0.681 kg |
