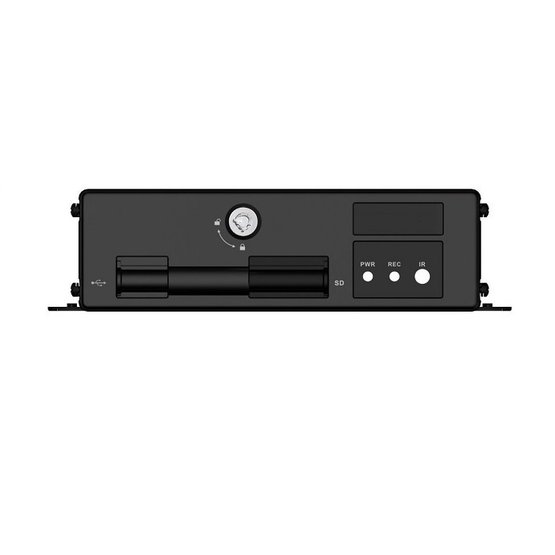

MXVR1004 Recorder mobile, 4ch, 1080P

| MXVR1004

Mobile video recorder designed for installation in vehicles. Supports to connect 4x analog HDCVI / AHD / TVI / CVBS and one IP camera (up to 4Mpix) to the device. ONVIF allows the connection of cameras of various brands. The camera footage is recorded on two SD cards (max. 2x 256 GB, not included). Recordings can be viewed directly on the connected monitor, networked in a web browser. The recording equipment keeps the system running even under heavy conditions because it meets the requirements of EN50155, ISO 7637-2 and ISO16750 - standards for electronic equipment used in road and rail transport, includes requirements for temperatures, humidity, shock, vibration. A version of the device with GPS / 4G / WIFI can be supplied upon request.

MXVR1004 Recorder mobile, 4ch, 1080P

Discontinued

Image processing:

  • the possibility of a time delay of switching off the recording after switching off the ignition
  • motion detection in the image
  • alarm in case of video signal loss
  • alarm in case of shadowing of the camera view
  • alarm in the event of a rollover
  • recording speed up to 100Mb / s
  • summary view of all connected cameras: combination 1/4/8/9/12
  • recording modes manual, schedule (regular (continuous), MD, alarm), stop

DiskManager PC Viewer:

Video + audio:

  • 1x RJ-45 PoE 10 / 100Base-TX for camera connection (using adapter)
  • max recording resolution: 1080p (1920x1080) at 25 fps
  • recording format and compression: H.264, H.264 +, H.265, H.265 +
  • monitor outputs: 2x TV; 800 x 600 resolution, (1x aviation port, 4pin)
  • 1x audio output, 1x audio input; G.711A / G.711U / PCM compression
  • remote access from Android and iOS mobile devices (with WIFI / 4G version)

Recording:

  • to SD card, 2 slots, up to 256 GB/card
  • 2x USB 2.0, backup to USB disk, mouse connection possible
  • search function during playback: by date and time, list of alarm records

General properties, parameters

  • Fanless: yes
  • Video compression: H.264, H.264 +, H.265 +, H.265
  • Max. IP recording resolution (Mpx): 4.0
  • Max. AHD 2 recording resolution (1080p)
  • Dahua IoT: no
  • NVR video analysis: yes
  • RAID controller: no
  • Alarm input / output: yes (7/2)
  • Number of connectable IP cameras: 1
  • Power supply for PoE / PoC cameras: yes
  • 4x HDCVI / AHD / TVI / PAL input (4pin)
  • 2x USB 2.0 ports for external disk connection and export of record backup (1x USB-A and 1x via extend port)
  • 2 x TV output (1 x 4pin output)
  • 1 x RS-232, 1 x RS-485
  • 1 x audio output, 1 x audio input
  • 3 x antenna output for GPS, Wi-Fi and 3G / 4G (only works with version with integrated modules [MXVR1004-GCW])
  • power supply 6 - 36V, power consumption without disk <6.7W
  • Integrated battery: no
  • operating temperature -30 °C to +70 °C

Parameters

For cars commercial, passenger
Signal AHD, analog
Use UNI
Weight 1.139 kg
