Keetec CZ 10 Keyless entry system with ecu

Keyless entry system KEETEC CZ 10 - 2pcs of remote controls RC MOTO. Trunk control, remote central locking (lock/unlock) 500mA, optical signals.

System Description

• Outputs to control central locking system (-300mA)
• Optical signalisation
• Programming by service button
• Programmable output for open the luggage compartment:

1. Adjustable output hook time (1-300 sec.) After activating the trunk opening output, this output is turned on for time, which was set.
2. Output with continuous power by pressing the button for opening the trunk and pushing again for disable this output
3. In the steady state, ”-“12V is on the output . After activating the trunk open output, voltage dissapears and output for directional light is always turned on. By pressing the button for trunk open again, voltage on directional lights dissapears and on the output for trunk opening is ”-“12V again.

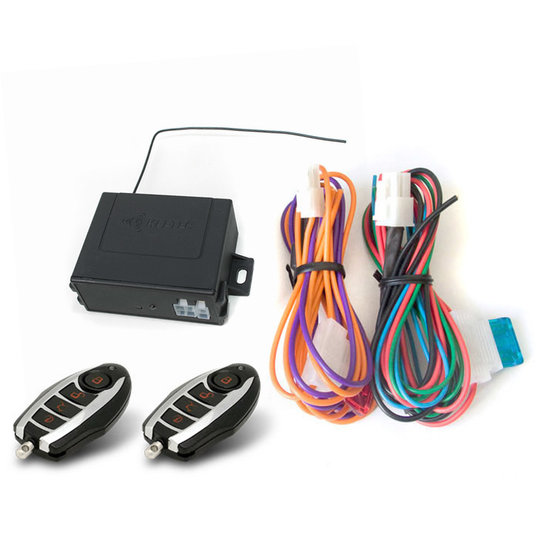

Package Contents

• control unit
• cabling
• 2 pieces of remote controls
• instruction manual

Remote Control Type

• RC MOTO
