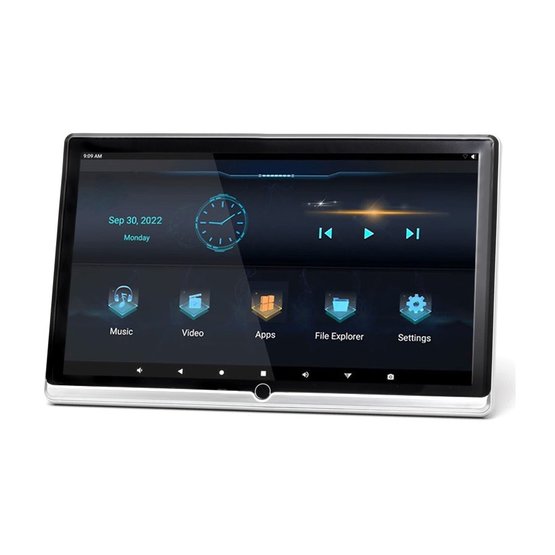

MH1230 Multimedia touch screen monitor 12.3" Android10

The slim design multimedia touch screen monitor (3GB+16GB, 8K video), with Android 10 system, with a diagonal of 12.3", HDMI / USB / SD inputs and integrated speakers is an ideal choice for safely watching movies or videos for passengers in the back seats. It is intended for mounting on the front headrest. The device has Bluetooth and Wi-Fi and allows you to use the Miracast function, wireless image mirroring from a mobile phone, includes a Czech menu, movie control with touch gestures, BT headphones in the package.

The MACE-PRO4 image processing technology can eliminate noise from TV or network video, remove the loss of detail and color in the transmission of the video signal, improving the image quality and displaying all the details. This will display a natural and detailed image.

Technical parameters:

• Cortex A55 1.8GHz deca-core CPU (T972)
• RAM 3GB DDR4, 16GB internal memory
• 12.3" LCD touch screen (31.3cm)
• IPS technology
• narrow SLIM design
• Full HD Resolution 1920 x 1080
• HDMI 2.0/1.4 b, supports HDMI ARC function, MHL 3.0/2.1 input
• 1x USB 2.0
• Bluetooth 4.0
• Wi-Fi 802.11 b/g/n RTL 8188 ETV 2.4GHz / 5GHz
• SD slot / USB with a capacity of up to 256GB
• 8K/4K H265 video playback support
• MACE-PRO4 image processing technology
• Miracast mobile phone wireless mirroring (Android, iOS) / Airplay
• FM transmitter - frequency 88MHz - 108 MHz (stereo audio transmission)
• 3.5 mm Jack for headphones
• built-in speakers 2 x 5W
• RCA video input
• RCA audio input/output

Other features:

• automatic entry into sleep mode
• shutdown when the ignition is turned off
• low battery protection system
• option to set the LOGO of the vehicle brand in the menu
• the possibility to charge the phone by connecting a USB cable
• for vehicles with 12V/24V voltage (9V-36V)
• working temperature -20°C ~ +60°C
• current consumption 800mA
• PAL/NTSC auto mode
• dimensions: 297 x 186 x 28mm (without holder)

Supported formats: (almost all files even in 4K / 8K resolution)

• HEVC / H. 265 3840 × 2160@60 fps DXVA
• H. 264 - 1080p @60 fps
• SVC - 1080p @60 fps
• MVC - 1080p @60 fps
• H. 263 -, max. resolution 720×576
• Sorenson Spark - 1080p @60fps
• MPEG-4 - 1080p @30 fps
• MPEG-2 - 1080p @60 fps
• MPEG-1 - 1080p @60 fps
• MPEG-2 - 1080p @60 fps
• VC 1 - 1080p @60 fps
• JPEG
• RV - 1080p @60 fps
• VP 6 - 1080p @60 fps
• VP 7 - 1080p @60 fps
• VP 8 - 1080p @60 fps
• WebP - 1080p @60 fps
• AVS+ - 1080p @60fps
• RMVB - 1080p @60fps

Package content:

monitor, set of mounting adapters, wiring for fixed mounting, wiring to the cigarette lighter connector, Bluetooth headphones, user manual
