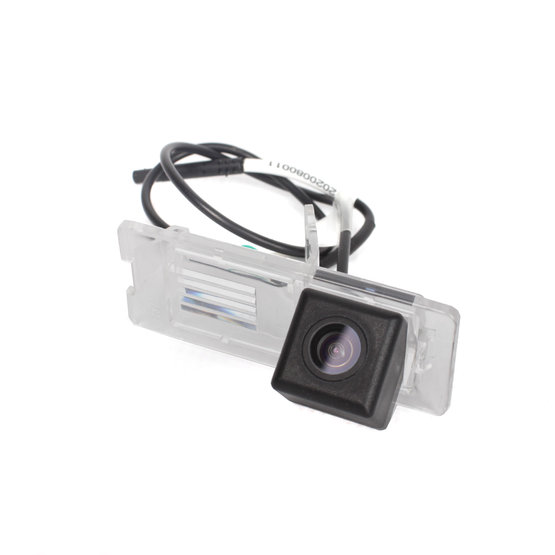

BC REN-01 Rearview camera for Renault vehicles

| BC REN-01

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.


Discontinued

OEM colour parking camera to install into the rear licence plate light body. There is a special place in the camera body assigned for the light bulb replaced from the original lamp.

Assigned for the car models:

  • RENAULT Fluence ( 2010 - >)
  • RENAULT Clio III . ( 10/2005-05/2009)
  • RENAULT Clio III . Facelift ( 06/2009- >)
  • RENAULT Espace IV . ( 11/2002- >)
  • RENAULT Laguna II . ( 02/2001-07/2007)
  • RENAULT Scenic II . ( 05/2003-04/2009)
  • RENAULT Modus ( 09/2004-01/2008)
  • RENAULT Master III. (2012->)

Technical parameters:

  • sensor: PC3089 1/3"
  • option to enable/disable to display the guide lines
  • electronic Aperture: 1/60 1/10000 sec.
  • minimum lighting: 0.1Lux
  • signal-to-noise ratio:> 48dB
  • TV system: NTSC (supported by each monitor/head unit)
  • number of TV lines: 600
  • effective pixels 668 × 576 pixels
  • weather protection: IP67
  • view angle: 170°
  • camera body: durable plastics "private housing"
  • image display: mirror
  • operating temperature from -30 °C to + 70 °C
  • AGC, BLC, white balance: automatically
  • signal cable: 6.2 m long with CINCH / RCA connector
  • video output: 1.0V / 75 Ohm
  • power cord length: 1m
  • power supply: 12V DC
  • consumption: <1W

Camera dimensions:

  • base 33 x 80 mm

Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Signal analog
Plugs CVBS-RCA
Model of the car Scenic II., Master III., Fluence, Modus, Clio III., Espace IV., Laguna II.
Use OEM
Brand of the car Renault
For cars commercial, passanger
Weight 0.34 kg
