Parking assistant Steelmate CAN module PTS400-Carens

Steelmate parking assistant, the values are displayed on the original KIA Carens display, designed for installation in the rear bumper. AntiHook function and automatic identification of faulty sensors is integrated.

PTS400-Carens is designed for KIA Carens RP - III. generation (from r. 2013) without SuperVision system.

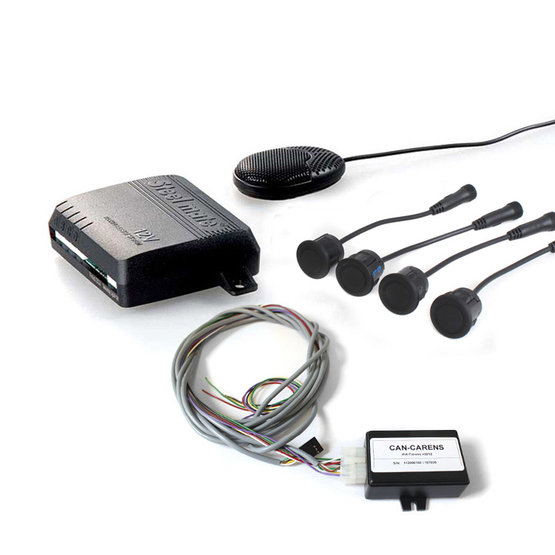

The set includes 4 pcs parking sensor, controller, CAN module, buzzer and wiring. Supply voltage 12V.

Product Features:

• sensors with fixed mounting in the bumper
• audible (changing the frequency of the beep) notify the obstacle position
• visual signalisation displayed on the original display
• If there is an obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
• autodetection (automatic identification of faulty sensor)
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers  0°, 4°, 10° included in the package
• sensors core diameter 14 mm
• mounting hole 18,8 mm
• sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
• unique technology programming each sensor if permanent barriers mounting to a car (spare wheel, towing, frame, ...)
• cable length to sensor 2.2m

displayed on the dashboard of the vehicle
