Remote start car alarm Magicar M 880 AS

The MAGICAR M 880 AS is branded article 2-way car alarm with LCD remote controller, enhanced design and function is available. All imported information about vehicle are showed on display for better control of a vehicle. This version is with vehicle remote start function.
The Magicar M880 AS is primary car alarm model of brand MAGICAR, marked as 88x. This car alarm is building on base of previous modern and time-proved car alarm Magicar M870AS.

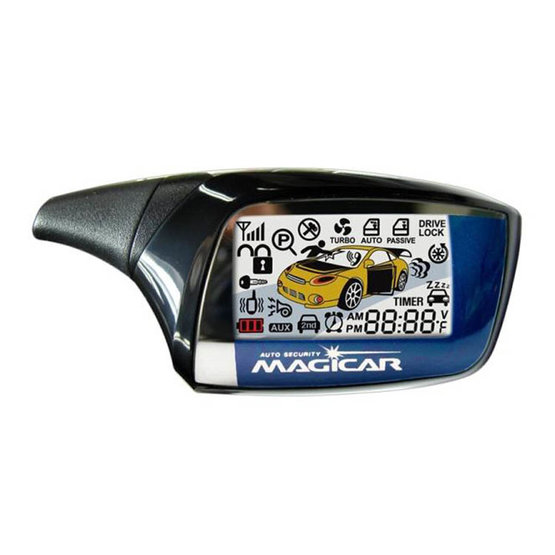

Set includes enhanced 2way remote controller. On the display are showed information like: status car (lock/unlock), actually active function (Turbo, Engine Running, Time Start, Cold Start, Auto, Passive, Drive Lock, Mute) also comfort function (current time, alarm clock, temperature, car battery voltage, remote battery voltage). When the car alarm is triggered, the display shows cause of trigger (door, hood, bonnet, shock sensor, additional sensor). Moreover during alert the remote controller beeping, vibrating and blinking by red light.
The remote controller is designed by black/blue /silver colors.

Additional new features of remote controllers for Magicar M880 AS:

• during normal operations backlight is blue light
• during alert backlight is changed from blue to red light
• setting function AUTO is now simplified
• information about remote learn process (when new remote controller are added into car alarm) is showed as ID LEARN text on display.
• when remote start running and extended the remote time function is chooses, the display shows START AGAIN text
• enhanced RF communication between main unit and remote controller

Remote controller

• set includes 1 pcs 2-way remote controller with 4 buttons
• max. 3 controllers into system
• signal from car alarm is transmitted onto all learned remote controllers
• current time
• alarm clock
• parking time
• vibration on/off
• temperature
• car battery voltage / remote battery voltage
• battery power save mode
• button lock function
• strength of RF signal
• max. range around 2000 meters

Sensors

• two zone shock sensor (into set)
• one zone additional sensor (as Ultra)
• bypass sensors by remote
• bypass sensor when AUX is activated (optional)
• bypass sensor when engine running

Inputs/Outputs

• additional one zone sensor input
• door, hood, bonnet input
• start-kill output
• light (NO/COM relay) output / sequential function optional
• two auxiliary output (optional) with adjustable pulse length
• trunk open (NO/COM relay) output
• lock/unlock (NC/NO/COM relay ) output (0.8s, 4s, 15s, double pulse)
• parking light input
• foot brake input
• hand brake input
• glows input for diesel engines
• ignition, accessories and starter output
• by-pass signal output
• manual/automatic transmission select loop
• alternator/revs sensing

Safety features

• monitoring of open doors
• memory state at power loss, memory alarm
• quite / loud activation
• rearming
• passive arming
• PANIC function
• dome light delay
• emergency deactivation by PIN code
• valet mode

Comfort features

• status of car on remote display
• flashing when the doors is open
• flashing when the hood is open
• call for vehicle owner - RPS module
• 3 level sensitivity of RPS sensor
• activation/deactivation of system when approaching/leaving to control the vehicle (AUTO function)
• drive lock (lock by ignition)
• remotely start by remote controller button
• timer for time start reservation
• cold start function
• turbo mode - turbocharger protection against overheating
• extension engine running time
• 3 reservation mode
• special lock/unlock pulse during or after remote start

Technical parameters

• type of siren: no back-up /12V/15W
• operational temperature: -40°C — +85°C
• power supply: 12 - 14 V
• type of RF communication: FSK modulation/hopping code
• RF power: 10 mW
• operational frequency: 433,92 MHz
