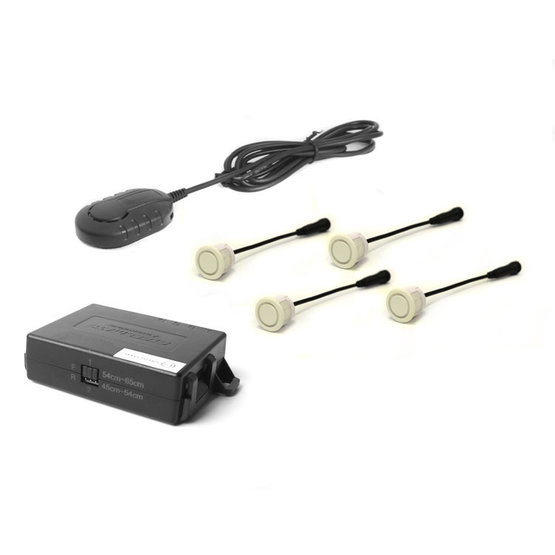

Steelmate PTS411EX WHITE parking assistant

Parking assistant STEELMATE with the option to install as  Rear or Front, with 4 white sensors and buzzer. Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. New functions of sensitivity setting, learning function, buzzer with adjustable volume and tone frequency added. The unit is designed for 12V/24V on board voltage cars. The length of the wires to the sensors is 2.3 m.

When installing the parking assist in the front bumper, it is necessary to use EXT CABLE KIT extension cables.

System Description:

• sensors with fixed assembly to the bumper
• fast obstacle detection
• sound alarm (beeps changing frequency) indicates the position of obstacles
• excellent coverage of the entire area behind or before the vehicle
• when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
• auto detection (automatic identification of the defective sensor)
• excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
• angle washers  0°, 4°, 10° included in the package
• sensors core diameter 14 mm
• mounting hole 18,8 mm
• sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
• the length of the wires to the sensors is 2.3 m
• adjustable volume directly on the buzzer body (3 levels)
• adjustable frequency directly on the buzzer body (2 levels)
• adjustable sensitivity of the sensors on the control unit (2 levels)
• the unique learning function (ignoring permanent obstacle - tow bar, spare wheel, frame, ...)
• with additional ACC wire (pink wire) for stable power supply(optional connection)
• control unit is not waterproof, must be installed in dry place

Note: The control unit contains a 3 PIN connector for displayconnection, display with old 8 PIN connector is not compatible!
