TFT4A2 Monitor 4.3" 2ch RCA 12/24V
|
TFT4A2

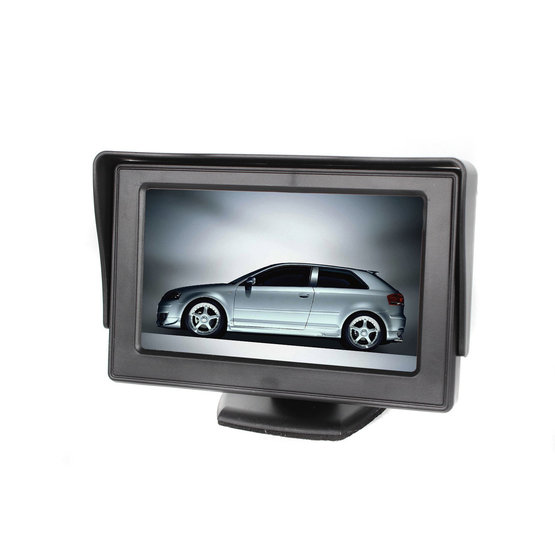

Universal monitor with a 4.3" screen in diagonal, designed to display the video signal from parking camera. The monitor contains two RCA video inputs. It can be installed on the dashboard, or on the ceiling.
Universal monitor with a 4.3" screen in diagonal, designed to display the video signal from parking camera. The monitor contains two RCA video inputs. It can be installed on the dashboard, or on the ceiling.
Specifications:
- 4.3” (10.9cm) TFT monitor
- aspect ratio: 16:9 / 4:3
- TV system: PAL / NTSC - automatically
- resolution: 640 x 480 (RGB)
- 2x video input
- automatic switching to the input for the parking camera after reverse gear is engaged
- automatic switching on of the monitor after the input of an AV signal
- the adjustable stand allows installation on the ceiling, or on dashboard
- for cameras: CINCH (RCA) CVBS signal plug
- removable sun shield
- supply voltage 12/24V
- working temperature: -30°C - +70°C
- monitor dimensions: 115 x 78 x 25mm (WxHxD)
Included:
- monitor with stand and 3M tape
- removable sun shield
- power cable with free conductors
Parameters
| Use | UNI |
|---|---|
| For cars | passanger, commercial |
| Diagonal | 4,3" |
| Signal | analog |
| Plugs | CVBS-RCA |
| Weight | 0.19 kg |
