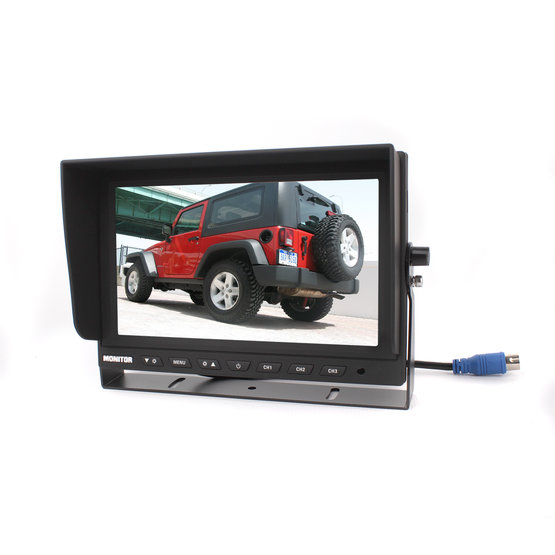

TFT9HD3 Monitor 9" AHD 3ch 4PIN 12/24V
|
TFT9HD3
AHD Monitor 9" for vehicles, supporting up to three cameras to connect, M12 4PIN screw plugs, 1024x600 resolution, for 12/24V on-board voltage, AHD cameras or analogue cameras with M12 or RCA cinch plugs (using a reduction) compatible, 180° flip image function, ideal to use with rearview camera, side camera and camera in the cargo area.
Discontinued
AHD Monitor 9" for vehicles, supporting up to three cameras to connect, M12 4PIN screw plugs, 1024x600 resolution, for 12/24V on-board voltage, AHD cameras or analogue cameras with M12 or RCA cinch plugs (using a reduction) compatible, 180° flip image function, ideal to use with rearview camera, side camera and camera in the cargo area.
TIP: Connect the dedicated trigger wire for each camera (side to turn signal, rear to reverse, ..) The fullscreen of a particular camera will show up automatically, when the driver needs to see it.
Features
- diagonal 9” TFT LCD 16:9
- 1024 x 600 RGB resolution
- AV input 3x 720p HD video input
- trigger wire for each video input (3x)
- image orientation adjustment (left, right, up, down)
- on / off guide lines Yes
- speaker Yes
- backlit buttons
- 500cd / m2 display backlight
- PAL/NTSC TV system automatically
- support AHD, CVBS cameras automatically
- shock resistance min. 4G
- DC power supply 12-24V
- working temperature from -20 to +70 °C
- dimensions 235 x 158 x 27 mm (without shield and stand)
Package contents: monitor, main cabling, remote control, U stand, shield, allen key
Parameters
| Use | UNI |
|---|---|
| For cars | commercial |
| Diagonal | 9.0" |
| Signal | AHD |
| Connectors | M12 |
| Weight | 1.29 kg |
