Thinkware MB100 Video splitter module 1-4

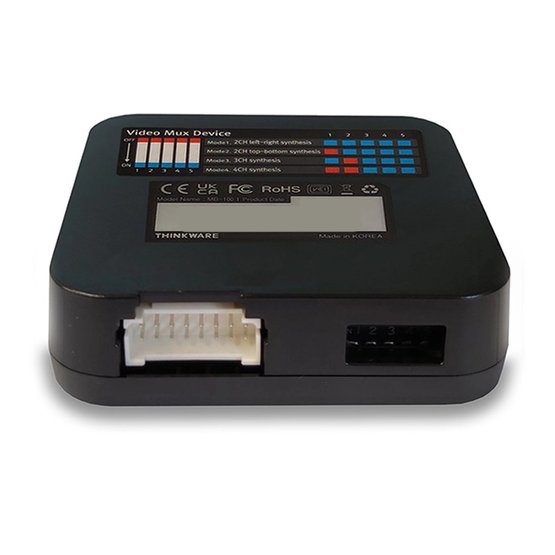

The MB100 video splitter allows to connect up to 4 additional cameras to the main camera (F200PRO or T700). You will get a record of what happened in the vehicle and its surroundings from a total of up to 5 lenses. Moreover, if you use the T700 as the main camera, you can have the live-view from all cameras remotely, wherever you are, even when the car is parked.
The MB100 video splitter allows to connect up to 4 additional cameras to the main camera (F200PRO or T700). You will get a record of what happened in the vehicle and its surroundings from a total of up to 5 lenses. Moreover, if you use the T700 as the main camera, you can have the live-view from all cameras remotely, wherever you are, even when the car is parked.
- Key:
piano code switch
composite screen can be configured according to switch combination - Power Source:
2 (BAT, GND)
DC 12 V ~ 24 V
Cable length: 3 m - AV-IN (For optional camera connection):
4 cables (CAM 1, CAM 2, CAM 3, CAM 4)
2.5 pi Stereo-jack type
AFHD
Cable length to connecting connector: 15 cm - AV-OUT(For front camera connection):
1 cable (AV-OUT)
2.5 pi Stereo-jack type
For front camera connection
Cable length: 3 m - Recording Channel: Up to 4 Analog Full HD cameras can be input (total 5 lens)
- Composite Video: Full HD (1920 x 1080) @ 30fps
- Dimensions (WxDxH): 65 x 65 x 17.5 mm (2.56 x 2.56 x 0.69 inch)
- Operating Temperature: -10°~ 60°C (14°~ 140°F)

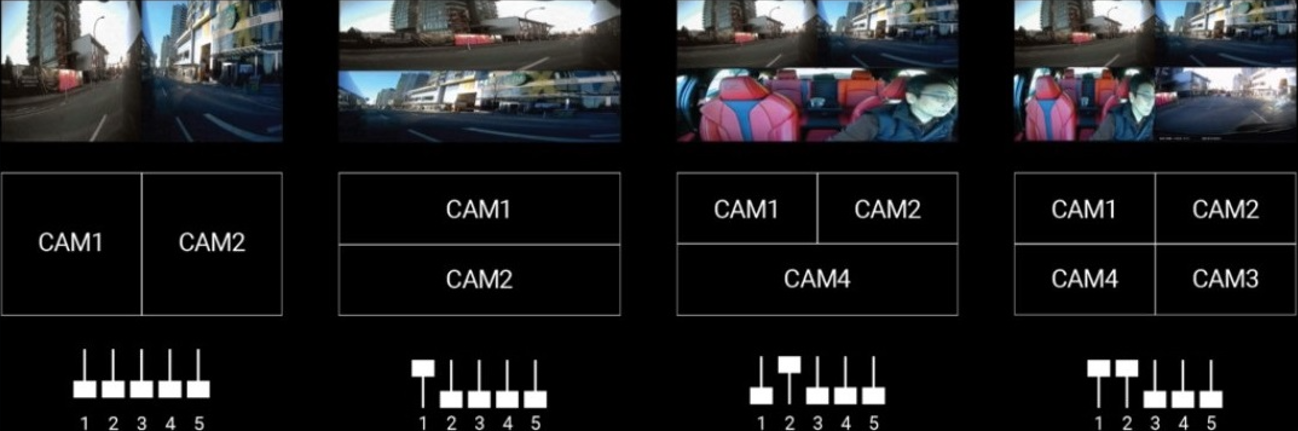

Split display setting:
In the package:
- MB100 video splitter
- main wiring
- 4 x input for additional camera (jack 2.5 mm)
- 1 x input to MB100 (white connector)
- 1 x power cable (2.5 meters - free wires BAT, GND)
- 1 x output for the main camera (jack 2.5 mm)
- video cable (connection MB100 / main camera)
- length 3 m
- connectors 2x jack 2.5 mm
NOTE:
- the splitter box can ONLY be used as an add-on accessory to a compatible Thinkware Dash Cam. The Multiplexer Bundle by itself cannot be used to record driving footage
- the recording device (it is part of a compatible Thinkware Dash Cam) records all additional cameras as one channel in the image split (set by microswitches)
