BC NIS-51 Rearview camera in handle Tiida
|
BC NIS-51

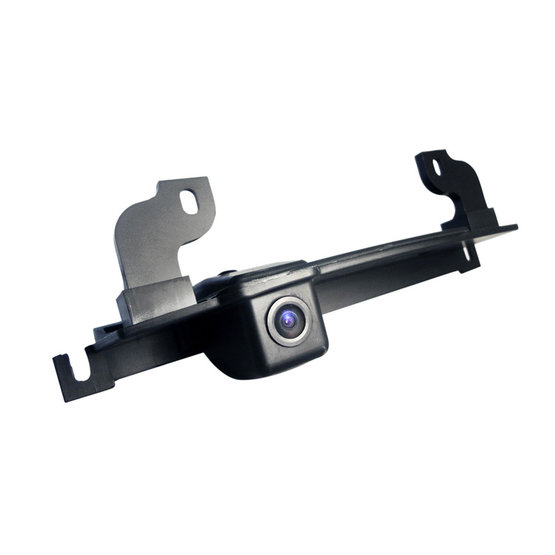

OEM color rear view camera to be installed in the handle of the 5th door, for vehicles Nissan Tiida.
OEM color rear view camera to be installed in the handle of the 5th door, for vehicles Nissan Tiida.
Suitable for cars:
- NISSAN Tiida
Specification:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
NOTE: The camera is designed for aftermarket head units with RCA camera input. Using with oem radio is likely to require the specific video adapter for parking camera!
Parameters
| Brand of the car | Nissan |
|---|---|
| Model of the car | Tiida |
| Signal | analog |
| Use | OEM |
| Plugs | CVBS-RCA |
| For cars | passanger |
| Weight | 0.416 kg |
