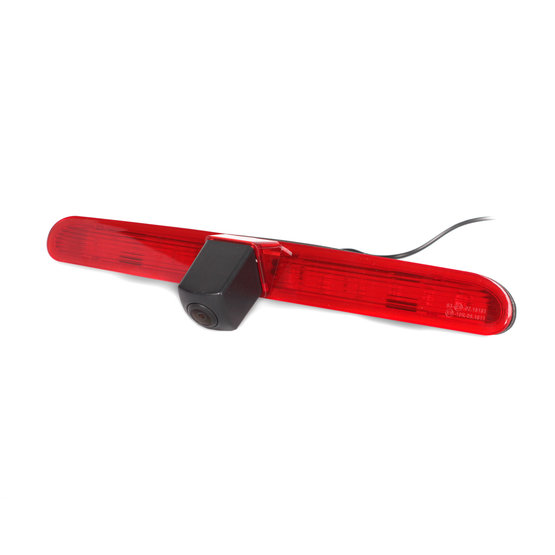

BC PGT-PARTNER Rearview camera in-brake light
|
BC PGT-PARTNER
OEM color parking camera integrated in the central brake light for Peugeot Partner and Citroen Berlingo (08-18)
OEM color parking camera integrated in the central brake light for Peugeot Partner and Citroen Berlingo (08-18)
For vehicles with wing or folding doors
- PEUGEOT Partner II. (4/08-8/18)
- PEUGEOT Partner III. (9/18-)
- PEUGEOT Rifter (18-)
- CITROEN Berlingo (4/08-8/18)
- OPEL Combo [E] (18-)
- TOYOTA Proace City (18-)
Parameters
- CMOS 1/3 "sensor chip
- TV system: NTSC
- video output: 1.0V / 75Ohm
- horizontal view angle: 120°
- weather protection: IP69K
- vibration resistance: min. 4G
- camera connector: 4 pin
- monitor connector: CINCH (RCA)
- camera cable length: 2.5m
- cable length in cable harness: 10m
- horizontal resolution: 700 TV lines
- white balance: automatic
- minimum illumination: 0Lux (infrared LED illumination)
- signal-to-noise ratio:> 48dB
- electronic shutter: 1/60 to 1/100000 sec.
- Power consumption: <3W
- supply voltage: 12V
- working temperature from -30 °C to + 70 °C
- e-mark
Parameters
| Brand of the car | Opel, Toyota, Citroen, Peugeot |
|---|---|
| Model of the car | Proace, Combo, Berlingo, Partner, Rifter |
| Signal | analog |
| Connectors | CVBS-RCA, M12 |
| Use | OEM |
| For cars | commercial, passenger |
| Weight | 0.583 kg |
