BC VW-09 Camera in handle Audi Škoda VW
|
BC VW-09

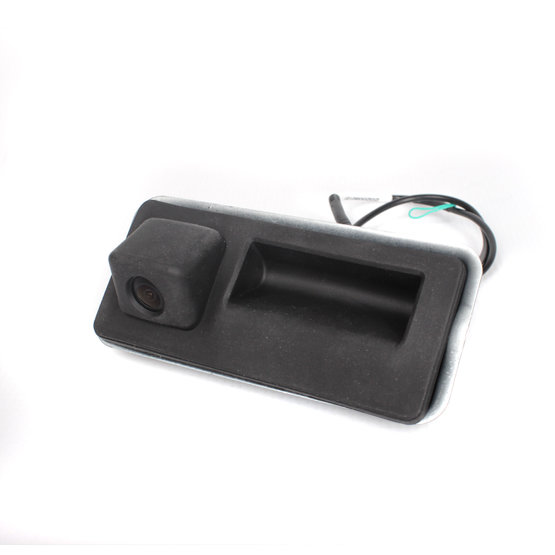

OEM parking camera for Audi, Skoda, VW (15-) with installation into 5th door handle. The camera has a switch and a connector to plug the door opening wiring.
_bc_vw-09/1-bc-vw-09.jpg "BC VW-09 Camera in handle Audi Škoda VW")
_bc_vw-09/3-bc-vw-09.jpg "BC VW-09 Camera in handle Audi Škoda VW")
_bc_vw-09/2-bc-vw-09.jpg "BC VW-09 Camera in handle Audi Škoda VW")
OEM parking camera for Audi, Skoda, VW (15-) with installation into 5th door handle. The camera has a switch and a connector to plug the door opening wiring.
Suitable for the cars:
- AUDI A4 [B9] (15-)
- ŠKODA Octavia III. (16-)
- ŠKODA Superb III. (16-)
- VW Tiguan II. [AD1] (16-)
- VW Touran III. [5T] (15-)
Technical Parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!
Parameters
| Use | OEM |
|---|---|
| For cars | passenger |
| Brand of the car | Audi, Škoda, VW |
| Model of the car | Touran III., Superb III., A4, Touran, Tiguan, Superb, Octavia III. |
| Signal | analog |
| Connectors | CVBS-RCA |
| Weight | 0.499 kg |
