BC VW-CADDY2 Rearview camera in brakelight (2020-)
|
BC VW-CADDY2

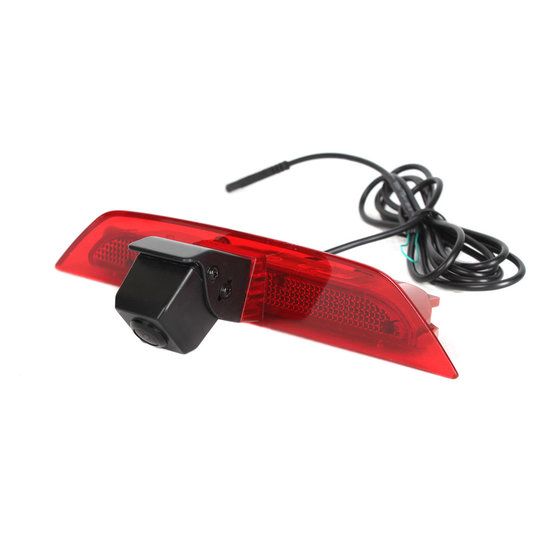

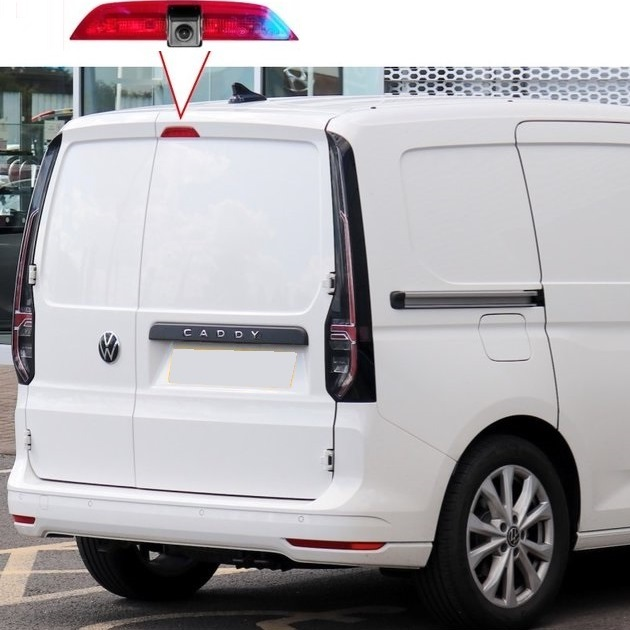

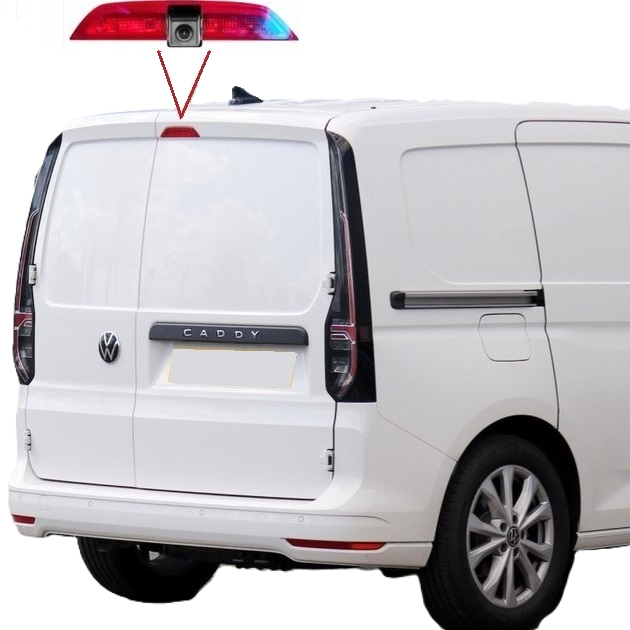

Parking camera integrated in the central brake light installed above the rear door for VW Caddy (2020-) vans.
Parking camera integrated in the central brake light installed above the rear door for VW Caddy (2020-) vans.
Assigned for the car models:
- VW Caddy V. (2020-)
- Ford Tourneo Connect
Technical parameters:
- sensor: 1/2.7 FH8536H+C2399
- Electronic Aperture: 1/50 1/10000 sec.
- Minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC
- video resolution: 1.000 TV lines
- weather protection: IP69K
- sensing angle: 122° horizontal
- camera body: durable plastics "private housing"
- image display: mirror
- white balance: automatically
- operating temperature from -20 °C to + 75 °C
- AGC, BLC, white balance: automatically
- Signal cable: 10m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
- brakelight dimensions: 181 mm x 31 mm
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit requires to add the video adapter for parking camera!
Parameters
| Brand of the car | VW |
|---|---|
| Model of the car | Caddy |
| Use | OEM |
| For cars | commercial |
| Signal | analog |
| Connectors | CVBS-RCA, M12 |
| Weight | 0.65 kg |
