TFT M05 Monitor 5" 2ch RCA 12V
|
TFT M05

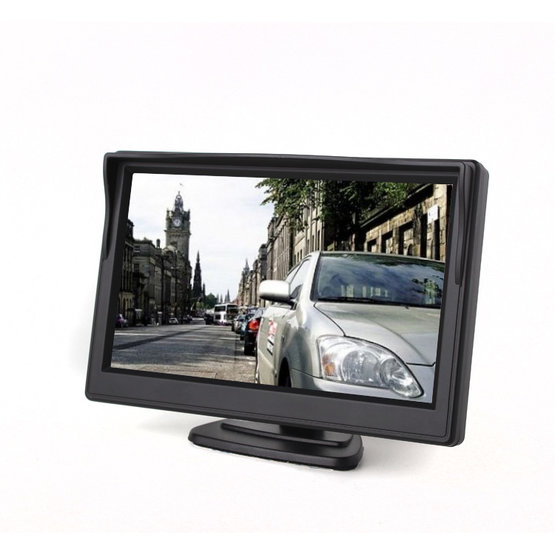

TFT car monitor with a diagonal of 5.0'' designed to display the image from the AV signal in the car. Monitor includes two AV inputs and 2 types of holders.
TFT car monitor with a diagonal of 5.0'' designed to display the image from the AV signal in the car. Monitor includes two AV inputs and 2 types of holders.
Technical specification:
- screen size: 5'' (12.5cm)
- resolution: 480 x 234 RGB
- power supply: 12V
- dimensions: 12.5 cm x 8.2 cm x 3.0 cm (without bracket)
- display Standard: PAL / NTSC
- power consumption: approx. 1.3W
- working temperature: -20 °C to 70 °C
- storage temperature: -30 °C to 80 °C
- automatic activation after receiving AV signals
- image settings: (brightness, contrast, language, etc.)
- without guide lines, without speakers
Package includes: monitor, dashboard holder, holder with glass suction cup, power connector with free wires.
Parameters
| Connectors | CVBS-RCA |
|---|---|
| Use | UNI |
| For cars | passenger |
| Signal | analog |
| Diagonal | 5.0" |
| Weight | 0.293 kg |
