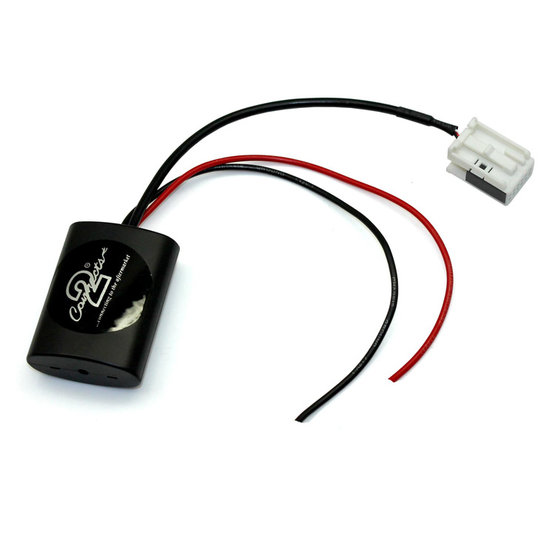

BT-A2DP VW 12 Bluetooth Audio Adapter

Bluetooth audio module for vehicles SEAT / Skoda / VW, allows wireless music streaming from your mobile phone to the original car radio.

Suitable for cars:

• ŠKODA Fabia II. (2009->)
• Skoda Roomster (2008->)
• ŠKODA Octavia II. (2008->)
• ŠKODA Superb II. (2008->)
• ŠKODA Yeti (2009->)

            for vehicles with an original radio / navigation Swing / Bolero / Amundsen / Columbus

• VW Polo V (2009->)
• VW Eos (2006->)
• VW Golf VI. (2009->)
• VW Jetta (2008->)
• VW Passat (2006->)
• VW Passat CC (2008->)
• VW Shirocco (2008 ->)
• VW Sharan II. (2010->)
• VW Touran (2010->)
• VW Tiguan (4 / 2007->)
• VW Transporter (10 / 2009->)
• VW T5 (10 / 2009->)
• VW Multivan (10 / 2009->)
• VW Caravele (10 / 2009->)
• VW Beetle II. (4 / 2011->)
• VW Sharan II. (9 / 2010->)
• VW Amarok (3 / 2010->)

           for vehicles with an original radio / navigation RCD210 / RCD310 / RCD510 / RNS510 / RNS510

• SEAT Alhambra II. (2011->)
• SEAT Altea (2009->)
• SEAT Leon (2009->)

            for vehicles with an original radio / navigation RCD310 / RCD510 / RNS510 / RNS510
- Transfer music to a distance of five meters from the receiver
- Compatible with mobile phones, tablets, MP3 player, Bluetooth apod.s

Technical specifications:

• Bluetooth version 3.0
• Bluetooth protocol: HFPV1.5, A2DPV1.2, AVRCPV1.4 HSP1.2, GAVDP1.2 IOP
• Current consumption: <25 mA
• Power supply: 12V
• Range: min.5
• Sensitivity: -80dBm <0.1% BER
• Frequency range: 2.4GHz-2.480GHz
• Audio performance: SBC Decode
• Audio SNR:> = 75 db

Note. There must be a choice in the radio menu, to choose AUX IN music source. For some radio you can enable this option via diagnostics. If OEM radio already contain Bluetooth, it is necessary to disabled it first.
