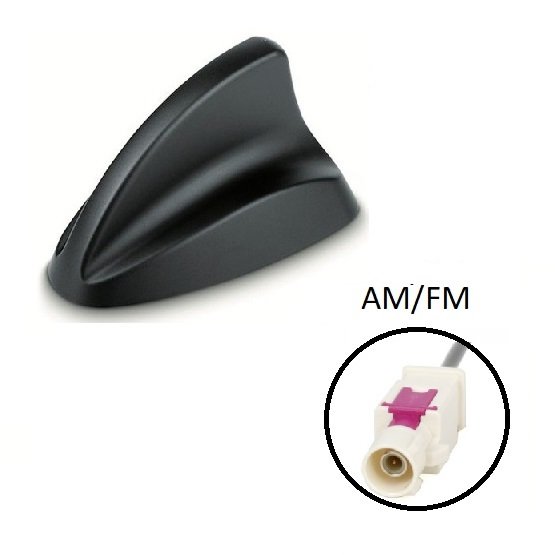

CAL-7677830 Calearo Shark2 AM FM antenna active

CALEARO | CAL-7677830

Shark2 AM FM antenna active.

	AM / FM
Connector	FAKRA Male White
Cable Type	RG 174
Cable Lenght	250 mm
Power Supply	12 Volt Dedicated and Phantom
Consumption	50 mA max
Impedance	50 Ω
Gain	--
VSWR	--
Protection Class	IP68
Coachwork drilling	Square: 15 x 15 mm - Round: 19 mm

Suitable for cars:
Universal use
ALFA ROMEO 145 / ALFA ROMEO GT
AUDI A3 / AUDI A6 Avant (->01) / AUDI A4 Avant (->01)
BMW Mini (01->)
CITROEN Xsara / CITROEN C2 / CITROEN C3 / CITROEN C5 Break
DAEWOO Nubira Combi / DAEWOO Tacuma
FIAT Stilo / FIAT Idea / FIAT Panda II. (03-12)
LANCIA Libra Combi / LANCIA Y (04->)
LOTUS Elise / LOTUS Esprite
MAZDA 323 (99->)
MAZDA 3
MAZDA 6 I. [GG][GY](2002-1/2008)
MITSUBISHI Outlander
NISSAN Micra / NISSAN Almera / NISSAN Primera
OPEL Omega Caravan / OPEL Zafira / OPEL Vectra / OPEL Meriva / OPEL Speedster / OPEL Agila
OPEL Astra(98->) / OPEL Vectra Vagon / OPEL Corsa (03->) / OPEL Signum
PEUGEOT 307
RENAULT Clio (01->) / RENAULT Megane II / RENAULT Scenic II
SEAT Aroza / SEAT Ibiza (98->) / SEAT Cordoba (98->) / SEAT Toledo (98->) / SEAT Leon / SEAT Altea
ŠKODA Felicia / ŠKODA Fabia I. / ŠKODA Fabia II. / ŠKODA Octavia I.
ŠKODA Octavia II. / ŠKODA Superb I. / ŠKODA Superb II.
TOYOTA RAV4 / Corolla (02->) / Yaris (03->) / Prius
VW Lupo / VW Polo / VW Golf III. / VW Corrado / VW Golf IV. / VW Beetle / VW Bora / VW Passat (93->) / VW Passat (97->)
VOLVO V40

* - it may be necessary to use a cable reducer in some cars to connect to an OEM (original) antenna duct.

Warning: due to the short rod It may be limited in places with a weaker signal limited FM reception.

Parameters

Brand of the car	Fiat, Lancia, Lotus, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Renault, Seat, Škoda, Toyota, VW, Volvo, Citroen, Daewoo, Alfa Romeo, Audi, Bmw
Model of the car	Meriva, Speedster, Agila, Astra, Corsa, Signum, 307, Clio, Megane II., Scenic II., Arosa, Ibiza, Cordoba, Toledo, A3, Outlander, C3, Xsara, C2, C5, Beetle I., Corrado, V40, Libra, 6 I., 3, 323, A4, Nubira, Altea, Leon, RAV4, Prius, Corolla, Yaris, Tacuma, Passat, Polo, Lupo, Bora, Golf III., Golf IV, Idea, Panda II., Stilo, Superb II., Octavia I., Octavia III., Fabia II., Superb I., Felicia, Fabia I., Mini, Almera, Primera, Micra, Zafira, Vectra
Use	OEM, Universal
Signal	AM/FM
Connector	w/o lead, FAKRA
Location	rear
Manufacturer	CALEARO
Weight	0.238 kg
