CAM7 Camera analog 190° 12-24V

| CAM7

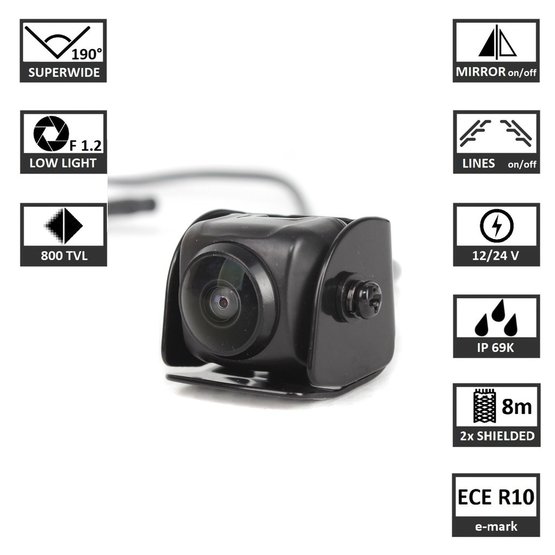

Universal miniature parking camera with the view angle of 190°, for outdoor installation IP69K, with a resolution of 800TVL, use as a rearview or front camera, durable metal body, with the option to turn the guidelines on/off and to change the left/right image orientation. The camera tilt is adjustable and horizontal or vertical surface installation is possible. The camera can also be installed without a holder (glued), the camera dimensions without the holder is just 21 x 24 x 21 mm.


Universal miniature parking camera with the view angle of 190°, for outdoor installation IP69K, with a resolution of 800TVL, use as a rearview or front camera, durable metal body, with the option to turn the guidelines on/off and to change the left/right image orientation. The camera tilt is adjustable and horizontal or vertical surface installation is possible. The camera can also be installed without a holder (glued), the camera dimensions without the holder is just 21 x 24 x 21 mm.

With a real angle of view of 190°, the BC UNI-WIDE can also look around the corner. This makes it an ideal solution for vehicles such as vans/motorhomes or trucks. This camera eliminates dangerous situations in city traffic, it is an invaluable helper for monitoring crosstraffic parking. If installed as a front, you can watch the approaching traffic even before you see the oncoming vehicles through the side window. Narrow streets and dense buildings are no longer a horror and cyclists will also feel safer.

Technical parameters:

  • 1/4" low light HD CMOS sensor
    • scanning angle: 190°
    • image resolution 800 TV lines
    • brightness F1.2
    • min lighting less than 0.01Lux
    • effective points 960x480
  • power supply: 12V/24V
  • TV system: NTSC
  • weather protection: IP69K
  • Cabling
    • double shielded
    • length 8m
    • terminated with a CINCH connector
    • slim connector 5mm
    • 2 power connection options
      • from reverse light
      • from ACC
  • hole for cabeling  5mm
  • Operating temperature -35 ℃ to 85 ℃
  • ECE R10

Features:

  • GREEN LOOP - guide lines            - disappear after cutting the loop (shown by default)
  • WHITE LOOP - image orientation  - left/right side will swap after cutting the loop

Parameters

For cars commercial, passanger
Use UNI
Signal analog
Plugs CVBS-RCA
Weight 0.29 kg
