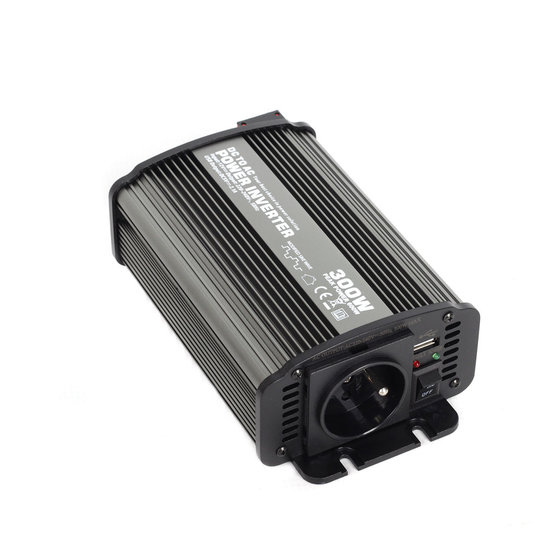

CAR300 Voltage inverter from 12V to 230V, USB, 300W
Power Inverter 300W suitable for vehicles with 12V on-board network (VANs, passanger cars), for small appliances 230V powered. The output current has the form of a modified sinusoid (rectangular waveform) with a frequency of 50Hz/230V, it is equipped with a USB output for charging USB devices (MP3 players,...).
Power Inverter 300W suitable for vehicles with 12V on-board network (VANs, passanger cars), for small appliances 230V powered. The output current has the form of a modified sinusoid (rectangular waveform) with a frequency of 50Hz/230V, it is equipped with a USB output for charging USB devices (MP3 players,...).
Features:
- maximum peak power of 600W
- nominal power 300W
- quiescent power: 500mA
- input voltage 12V
- dimensions 195*102*55 mm
- USB output 5V (max. 1,2 A)
- output frequency 50 ±3 Hz
- protection against overload, overheating, overvoltage at the input, undervoltage at the input
- protection against polarity reversal
ATTENTION: Do not connect the output of the inverter together with other sources of alternating current! (with another 230V mains socket, neither in parallel, nor in series, nor with the mains socket of the public distribution network/other converters).
Examples of using an inverter with suitable performance (make sure the inverter is not undersized).
Parameters
| Product type | Power inverters |
|---|---|
| Input / Output | 12V / 230V |
| Weight | 0.861 kg |
