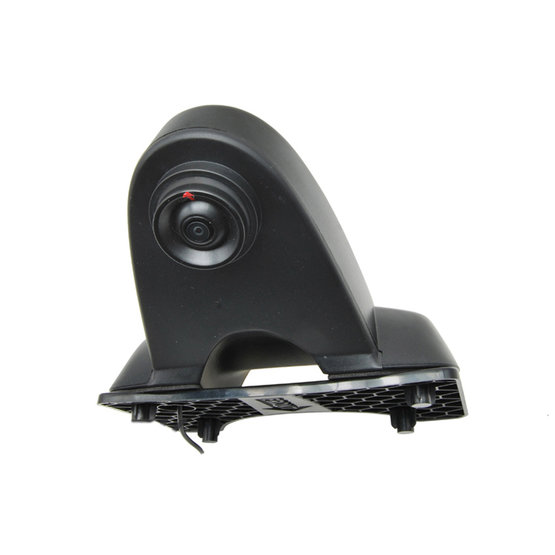

OEM Parking camera Citroen, BC CIT-01

| BC CIT-01

OEM colour parking camera for installation above the rear door.
OEM Parking camera Citroen, BC CIT-01

Discontinued

OEM colour parking camera for installation above the rear door.

Suitable for the car models:

  • MERCEDES Sprinter (W906) (2006->)
  • VW Crafter (4/2006->)
  • FIAT Ducato (6/2006-9/2011)
  • CITROEN Jumper (2006->)
  • PEUGEOT Boxer (2006->)
  • universal mounting on the rear upper edge

Technical parameters:

  • CCD 1/4 " sensor chip
  • diameter of the object lens 19mm
  • it displays the guide links for easy orientation by parking
  • Electronic aperture: 1/50 1/10000 sec.
  • Minimum illumination: 0,1 Lux
  • Signal to noise ratio:> 48dB
  • TV system: NTSC
  • TV lines: 480
  • Waterproof: IP68
  • Lens angle: 170 °
  • Video output: 1.0V / 75 Ohm
  • White balance: automatic
  • Operating temperature -30 ° C to +70 ° C
  • Signal cable lenght 7meters ended with CINCH connectors
  • Power supply cabel lenght 1m
  • Power consuption: <1W
Note: The camera is designed for aftermarket radio units with RCA AV input. Connecting to an original radio unit may require to add the video adapter for parking camera!

Parameters

Brand of the car Citroen, Mercedes, VW, Fiat, Peugeot
Weight 0.227 kg
