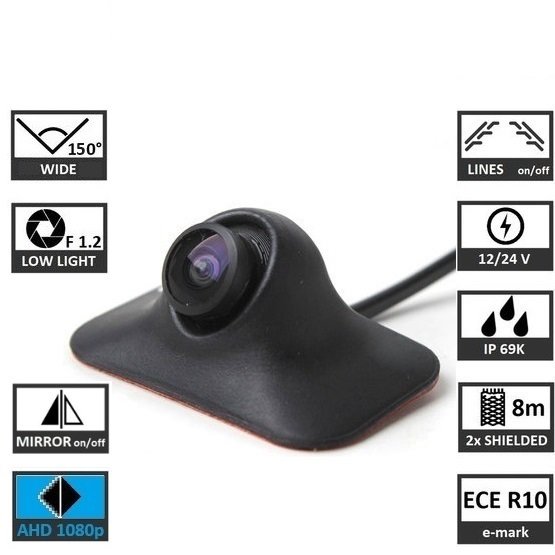

BC UNI-FLAT AHD Rearview camera 1080p AHD, 150°

| BC UNI-FLAT AHD

Universal parking camera, FullHD resolution 1080p - AHD signal, can be used as a front camera without guide lines or a parking camera, angle of view 150°, mounting on a flat surface using 3M tape. For connection, use an AHD compatible monitor (eg TFT5A2, TFT7HD2, TFT MIRROR7,...).

Show price
BC UNI-FLAT AHD Rearview camera 1080p AHD, 150°

Universal parking camera, FullHD resolution 1080p - AHD signal, can be used as a front camera without guide lines or a parking camera, angle of view 150°, mounting on a flat surface using 3M tape. For connection, use an AHD compatible monitor (eg TFT5A2, TFT7HD2, TFT MIRROR7,...).

Technical characteristics:

  • 1/3" low light HD CMOS sensor
    • scanning angle: 150° horizontally
    • image resolution 1920x1080 (1080p)
    • signal type: AHD
    • aperture F1.2
  • power supply: 12V/24V
  • TV system: NTSC
  • car BLC
  • weather protection: IP69
  • Cabling
    • double shielding
    • length 8 m
    • terminated with a CINCH connector
    • slim connector 5mm
    • 2 power connection options
      • from the reverse
      • from the ignition
  • Working temperature -20℃ to 75℃
  • ECE R10


Features:

  • GREEN LOOP - guide lines - disappear after cutting the loop (they are displayed by default)
  • WHITE LOOP - image orientation - left/right sides are changed after cutting the loop

Parameters

Use UNI
For cars passanger
Signal AHD
Plugs CVBS-RCA
Weight 0.22 kg
