New

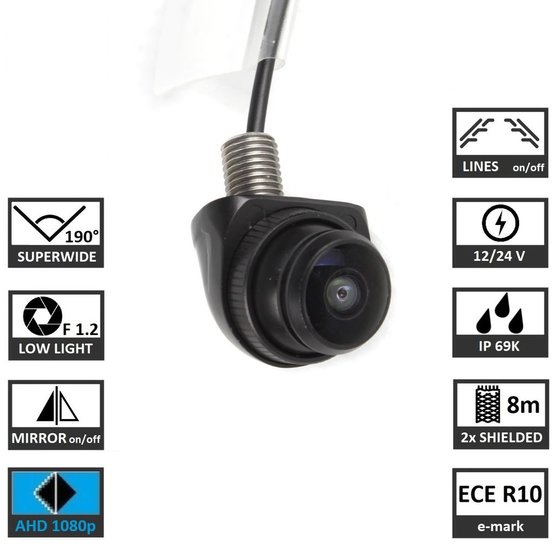

BC UNI-WIDE AHD Mini camera 1080p AHD, 180°

| BC UNI-WIDE AHD

Universal miniature parking camera with 180° view angle, with FullHD resolution 1080p - AHD signal, use as a rearview camera in the licence plate space, or as a side camera to the rearview mirror, or as a front to the grille of the front mask/bumper, with the option to turn the guidelines on/off and to change the left/right image orientation. For display, use an AHD compatible monitor (e.g. TFT5A2, TFT7HD2, TFT MIRROR7,...).


Universal miniature parking camera with 180° view angle, with FullHD resolution 1080p - AHD signal, use as a rearview camera in the licence plate space, or as a side camera to the rearview mirror, or as a front to the grille of the front mask/bumper, with the option to turn the guidelines on/off and to change the left/right image orientation. For display, use an AHD compatible monitor (e.g. TFT5A2, TFT7HD2, TFT MIRROR7,...).

Technical parameters:

  • 1/3" low light HD CMOS sensor
    • view angle: 180° horizontally
    • image resolution 1920x1080 (1080p)
    • signal type: AHD
    • aperture F1.2
  • power supply: 12V/24V
  • TV system: NTSC
  • BLC auto
  • weather protection: IP69
  • Cabling
    • double shielding
    • length 8 m
    • terminated with a CINCH connector
    • slim connector 5mm
  • 2 power connection options
    • from the reversing light
    • from the ignition
  • working temperature -20℃ to 75℃
  • ECE R10


Features:

GREEN LOOP - guide lines - disappear after cutting the loop (they are displayed by default)
WHITE LOOP - image orientation - left/right sides are swapped after cutting the loop

Parameters

Use UNI
For cars passanger
Signal AHD
Plugs CVBS-RCA
Weight 0.26 kg
