Keetec BS 810 LCD IS parking assistant

| BS 810 LCD IS

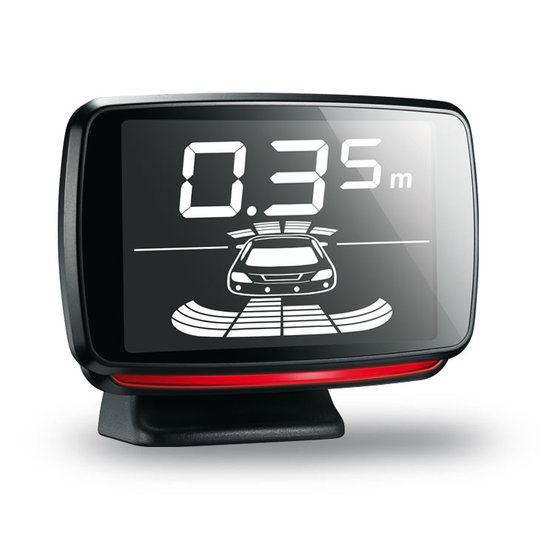

Parking assistant KEETEC with 8 innert silver sensors, with only one control unit, designed for installation in the front and rear bumper, with LCD display for convenient visual indication of the distance from obstacles. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).


Rear and front parking system KEETEC with 8 innert silver sensors and LCD Display with adjustable volume button on it. The system warns user by accoustic signals. Dual intelligent functions for cars with tow-bar, spare wheel or other protrusion. New functions of sensitivity setting and learning function added. Perfect performance under heavy rain environment. Set includes 8 pieces of ultrasonic sensors, control unit, LCD Display and wiring. The unit is for vehicles with 12V DC only.

System Description:

  • sensors with fixed assembly to the bumper
  • fast obstacle detection
  • sound alarm (beeps changing frequency) indicates the position of obstacles
  • excellent coverage of the entire area behind the vehicle
  • when is the obstacle at a distance of 30 cm from the vehicle, you will hear a continuous tone
  • auto detection (automatic identification of the defective sensor)
  • excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
  • angle washers  0°, 4°, 10° included in the package
  • mounting hole 16 mm
  • sensors supplied with 10 cm lenght cable and waterproof connector that ensures easy replacement if necessary
  • adjustable volume directly on the buzzer body (3 levels)
  • adjustable sensitivity of the sensors on the control unit (2 levels)
  • the unique learning function (ignoring permanent obstacle - tow bar, spare wheel, frame, ...)
  • with additional ACC wire (pink wire) for stable power supply(optional connection)

Technical parameters:

  • Operating voltage: 9 ~ 16V DC
  • Working current : < 350Ma
  • Detection range: 0.3 ~ 2.5 m
  • Display range : 0,3 ~ 2.5 m
  • Front: 0,3 ~ 0,9 m (Driving forward)
  •           0,3 ~ 0,9 m (Reversing)
  • Rear: 0,3 ~ 2.5 m

Operating temperature

  • ECU: -40°C ~ +80°C
  • Display: -40°C ~ +80°C
  • Sensor: -40°C ~ +80°C

Parameters

Product type Rear & Front sensors
Manufacturer Keetec
Display LCD display
Sensor type Flush fit 16mm
Sensors colour silver
Power Suply 12VDC
