Keetec TS IMO v2 immobilizer

| TS IMO v2 BASIC

Keetec TS IMO is a contactless immobilizer for professional protection of the vehicle against unauthorized use, designed for vehicles with on-board voltage 12/24V.


Keetec TS IMO is a contactless immobilizer for professional protection of the vehicle against unauthorized use, designed for vehicles with on-board voltage 12 / 24V.

Deactivation of the immobilizer using the remote control, E-card or personal PIN code (validation).

4 ways to use:

  • Normal - immediate blocking
  • Movement - locking if the vehicle is moving
  • Start / Stop - lock the Start / Stop button
  • Gate - electric gate control

Features:

  • easy programming with PC
  • remote control with a new generation of floating code
  • activation deactivation in contactless mode
  • Possibility to create a personal PIN code using original vehicle elements
  • suitable for vehicles with 12 and 24V on-board voltage
  • integrated tilt sensor
  • integrated acceleration sensor
  • low battery signal in the remote controller
  • output for siren / horn connection
  • output for GSM pager connection (eg GPS SNIPER MAX)
  • possibility to program 10 remote controllers and 10 e-cards

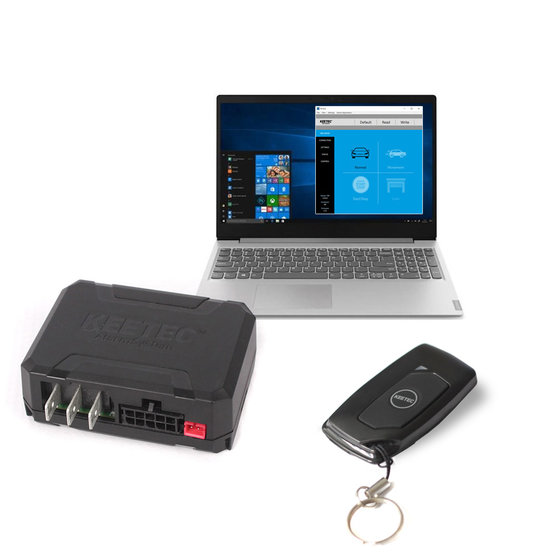

Package Contents:

  • main unit
  • cable loom
  • RFID antenna
  • 1 pcs of remote controller
  • 1pc E-card
  • buzzer

Technical parameters:

  • supply voltage: 12 / 24V
  • operating temperature of the device: -40 ° C to 80 ° C
  • stand-by consumption: 25mA
  • consumption in sleep mode: <3mA
  • 2.4 GHz transmission frequency
  • current carrying capacity of universal output 12V-100mA / 24V-50mA
  • current carrying capacity of the immobilization circuit 12V-20A / 24V-10A
  • current carrying capacity of the siren output (+) 12V-1A / 24V-0,5A, (-) 12V-200mA / 24V-100mA
  • battery in RC remote control SMART 2: CR2450

Optional accessories: KEETEC AS 35 siren.

Parameters

Type Immobilisers
Manufacturer Keetec
Weight 0.33 kg
