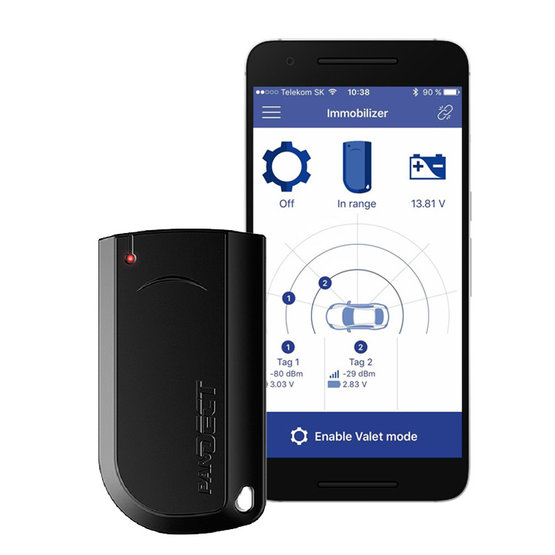

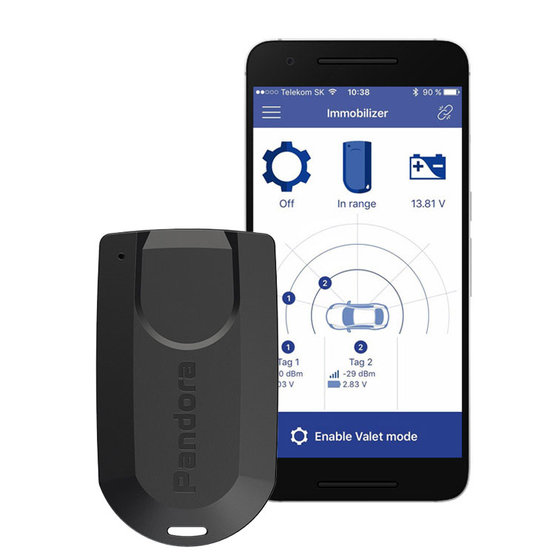

Pandora IMMO immobilizer


Pandora Immo is an advanced anti-theft system for vehicles. The system that is designed using high-efficient integrated solutions is convenient, reliable and easy to install. You can use Android smartphone to adjust any settings via Bluetooth. Immo has the smallest RF tag among similar systems and the highest energy efficiency.

Immobilizer Pandora Immo is a high-tech safeguard system that is intended to prevent car theft attempts and hijacking. It can be used on modern cars without damaging of original electronic systems. This system that is designed with using high-efficient integrated solutions is convenient and reliable. This immobilizer has a built-in three-coordinate accelerometer (motion sensor) that allows blocking engine when starts moving. It prevents device detection and allows for remote start and engine preheating to operate without deactivation of anti-theft immobilizer function. System’s RF tag has a smallest size among similar systems and the highest energy efficiency. ‘Proximity detection of the owner’ programmable algorithm detects either RF tag is approaching or distancing from the car, bringing anti-theft and anti-robbery function to a new level. E-mark approval ECE 116, tested and certified by TÜV SÜD.

System features
Base unit

  • Dialog coding of control commands.
  • Individual 128-bit encryption key.
  • Built-in integral accelerometer for determining motion.
  • Built-in module 2,4 GHz with Bluetooth 4.2 Low Energy support.
  • Monitoring of on-board voltage.
  • Built-in blocking relay.
  • Status output to enable additional functions.
  • Antihijack 1 and Antihijack 2.
  • Pandect BT mobile app.

Immobilizer tag

  • Dialog coding of control commands.
  • Button to enable/disable maintenance/valet mode.
  • Individual 128-bit encryption key.
  • Built-in LED indicator.
  • Built-in integral accelerometer.
  • CR-2032 battery.

System set

  • Base unit
  • Immobilizer tags 2pcs
  • Plastic card with PIN-code to pair
  • Leather case for tags
  • Beeper (compact sound emitter)
  • User installation manual
  • Fastening kit
  • Packaging

Technical parameters

Name of parameter Base unit Tag
Dimensions, mm 56x25x11 51x28x6
Supply voltage, V 8...18 3
Current consumption, mA 3 -
Current consumption when blocking, mA 70 -
Maximum load current, switching on blocking output,A Nominal 9 (max 20, no more than 1minute) -
Battery - CR2032
Radio frequency, GHz 2,4 – 2,5 2,4 –2,5
Type of control code Dynamic dialogue Bluetooth Smart Dynamic dialogue Bluetooth Smart
Operating temperature range, oC From -40 to 85 From -20 to 70
(limited by battery features)

Mobilná aplikácia




Type Immobilisers
Connection Analog
Manufacturer Pandora
Weight 0.128 kg
