BC DOKKER Rearview camera in brakelight, Renault Express VAN
|
BC DOKKER

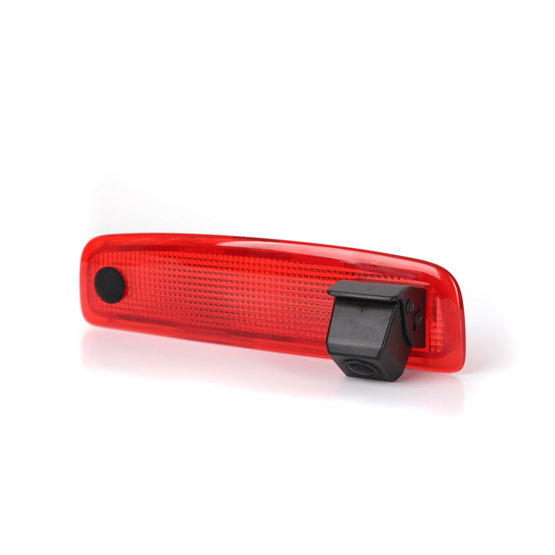

OEM Rearview camera integrated in the brake light, for Renault Express VAN and Dacia Dokker vehicles.
The camera includes brake light cover glass, the original light source is preserved.
Suitable for cars:

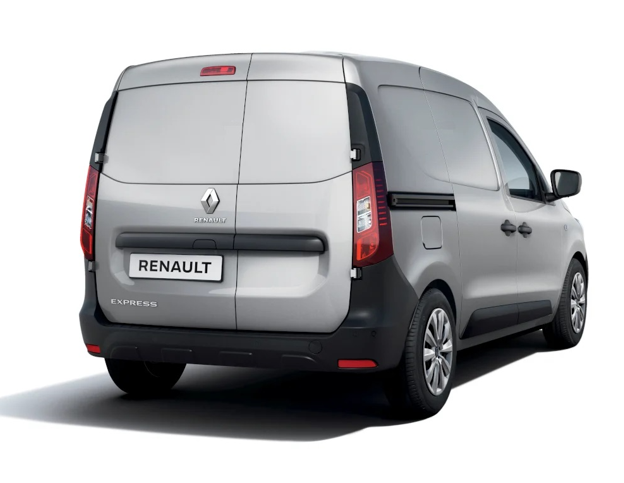

- RENAULT Express VAN (2024-)
- DACIA Dokker (2021-2023)
Technical parameters:
- CCD Sharp 1/4" sensor chip
- lens tilt: adjustable
- electronic aperture: 1/50 1/10000 sec.
- minimum lighting: 0.1Lux
- signal/noise ratio:> 48dB
- TV system: NTSC
- number of TV lines: 420
- weather protection: IP68
- scanning angle: 170°
- video output: 1.0V / 75Ohm
- white balance: automatic
- working temperature from -30 °C to + 70 °C
- camera power and signal cable: 50cm
- signal cable length 10m terminated with M12 4pin connectors (male / female)
- reduction M12 4pin / CINCH connector
- power cable with free ends, length 1m (use only if the camera will not be powered from the monitor)
- cover glass dimensions 48 x 183 mm
- homologation R10
Parameters
| Brand of the car | Renault, Dacia |
|---|---|
| Use | OEM |
| For cars | commercial |
| Signal | analog |
| Connectors | CVBS-RCA, M12 |
| Weight | 0.584 kg |
