Steelmate PTS410L5 SHINY parking assistant
|
PTS410L5 SHINY

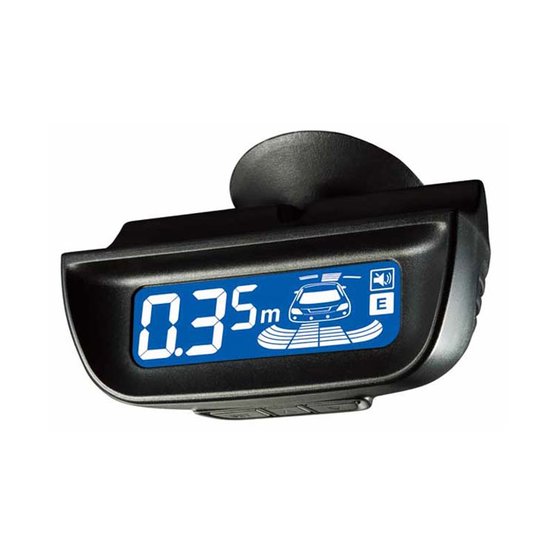

Parking assistant STEELMATE with 4 black glossy sensors, designed for installation in the rear bumper, with L5 LCD graphics display for convenient visual indication of the distance from obstacles. The display is attached to the windshield under the central rearview mirror. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).
Discontinued
Parking assistant STEELMATE with 4 black glossy sensors, designed for installation in the rear bumper, with L5 LCD display for convenient visual indication of the distance from obstacles. The control unit allows you to set a smart learning function, sensitivity in two levels and Antihook (push the scanning of 20 cm).
System Description:
- acoustic, voice and visual alarm
- automatic detection of damage to sensors (selftest)
- if the obstacle is at a distance of 30 cm from the vehicle, it will sound a continuous tone
- Antihook function - scanning shift + 20 centimeters (spare wheel, frame ...)
- sensitivity setting, in 2 levels
- excellent coverage of the entire area behind the vehicle, horizontal scan angle of 110° ± 15°
- angle washers 0°, 4°, 10° in the package
- sensor core diameter 14 mm
- installation hole 18.8 mm
- sensors with 10 cm cable with waterproof connector which ensures easy replacement, if necessary
- supply voltage: 12V DC
- working power: <2.5W
- cover range: 0.3 to 1.5 meters
Content:
- parking sensors 4 pieces
- display 1x
- control unit 1x
- cabling
- drill
- instruction manual
- warranty card
Note: The control unit contains a 3 pin connector for connecting the display, an old display with 8 pin connector is not compatible!
Parameters
| Manufacturer | Steelmate |
|---|---|
| Sensors colour | black shiny |
| Power Suply | 12VDC |
| Display | LCD display |
| Sensor type | Basic |
| Weight | 0.85 kg |
